Transmission Insulators - H2 - 2.5” Core Rod

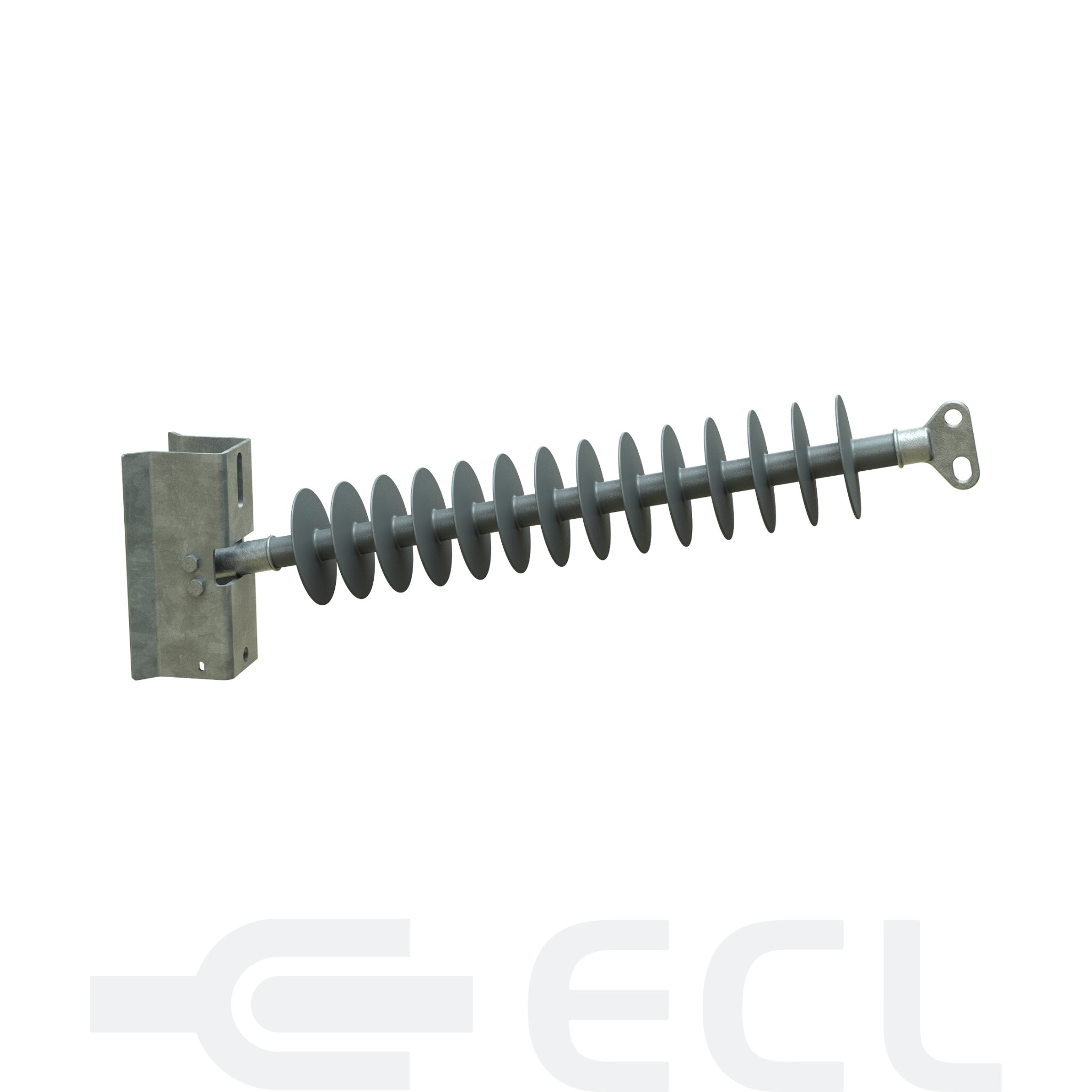

H2-MX Series are standard MPS Line Posts for standard strength applications.

Various end fittings and bases can be selected depending on the application.

Corona Ring information available on request.

Part Number	Line Voltage kV	Section Length mm	Rubber Length mm	Leakage mm	Dry Arc mm	60 Hz Dry Flashover kV	60 Hz Wet Flashover kV	CIFO+ kV	CIFO- kV	Cantilever Load (kg) MDCL	Cantilever Load (kg) SCL	Tensile Load (kg) STL
	46	658.9	381	1,082	449.6	183	163	309	392	865	1,730	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	46-69	762	482.6	1,351.3	551.2	219	198	371	461	714	1,429	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	863.6	584.2	1,621	650.2	254	232	432	527	620	1,240	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	965.2	685.8	1,890.8	749.3	290	266	495	589	534	1,069	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69-115	1,041.4	787.4	2,159	848.4	325	300	557	649	480	960	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	115	1,143	889	2,428.2	947.4	360	333	618	705	426	854	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	115-138	1,244.6	990.6	2,695	1,046.5	395	366	680	759	390	782	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	115-138	1,346.2	1,092.2	2,948.9	1,145.5	429	398	742	809	356	713	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	138-161	1,447.8	1,193.8	3,233.4	1,244.6	464	429	804	857	328	655	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	138-161	1,524	1,270	3,502.7	1,343.7	498	461	866	912	312	625	3,086	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
