Transmission Insulators - H1 - 2.0” Core Rod

Transmission Insulators - H1 - 2.0” Core Rod

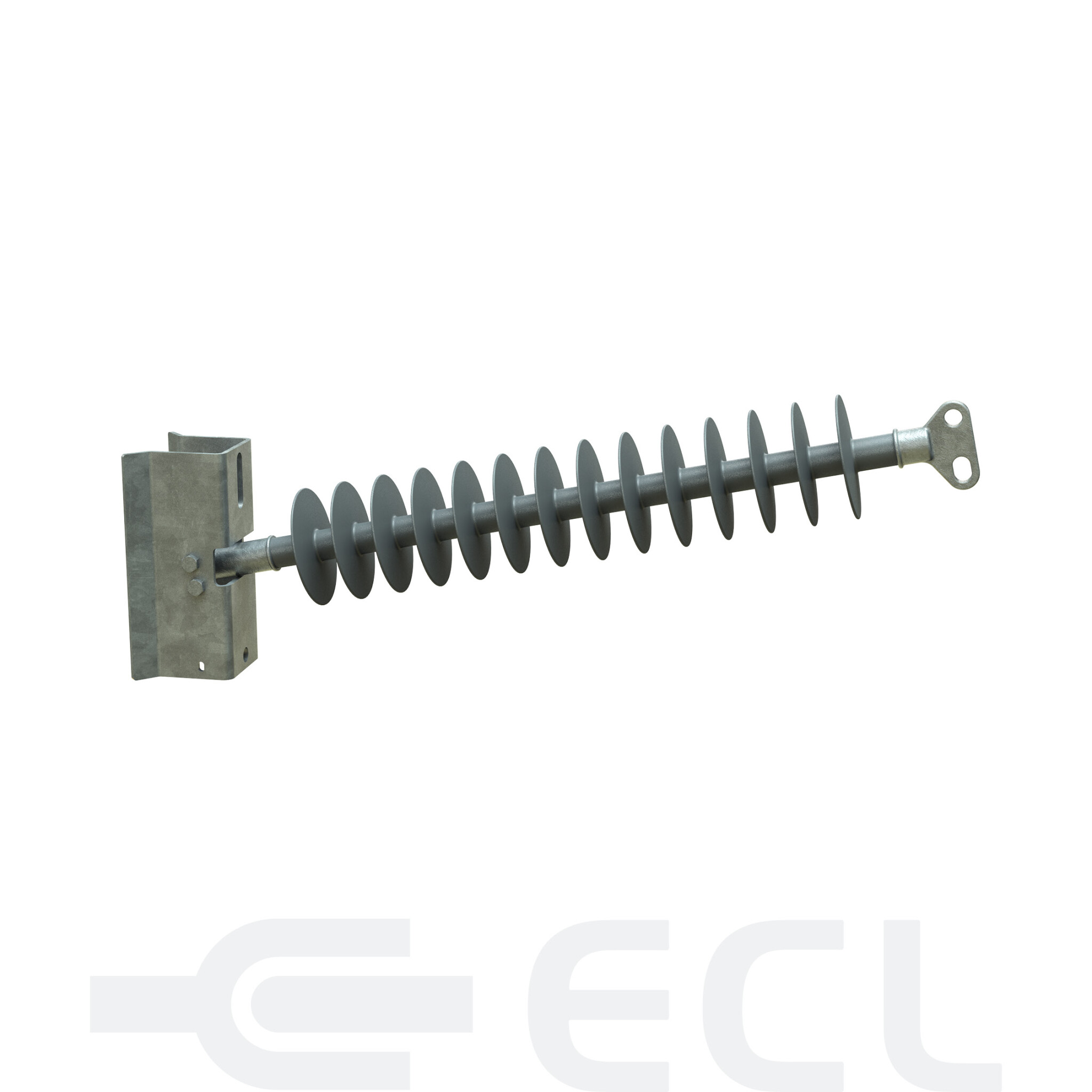

The H1-VX Series are Standard MPS Line Posts for lower strength applications.

End fittings, bases, lengths, and leakage are designed to customer specific applications.

Corona Ring information available on request.

Part Number	Line Voltage kV	Section Length mm	Rubber Length mm	Leakage mm	Dry Arc mm	60 Hz Dry Flashover kV	60 Hz Wet Flashover kV	CIFO+ kV	CIFO- kV	Cantilever Load (kg) MDCL	Cantilever Load (kg) SCL	Tensile Load (kg) STL
	25-35	3,039	6,451	16,256	8,387	139	120	236	306	558	1,116	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	25-35	13,039	6,451	19,489	8,387	139	120	236	306	558	1,116	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	25-35	13,039	6,451	22,758	8,387	139	120	236	306	558	1,116	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	35-46	15,555	9,032	25,355	10,967	176	156	298	379	436	873	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	35-46	15,555	9,032	28,608	10,967	176	156	298	379	436	873	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	35-46	15,555	9,032	31,860	10,967	176	156	298	379	436	873	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	46-69	18,064	11,612	31,186	13,551	213	192	361	450	358	716	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	46-69	18,064	11,612	37,721	13,551	213	192	361	450	358	716	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	46-69	18,064	11,612	44,269	13,551	213	192	361	450	358	716	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	20,585	14,192	40,322	16,129	249	227	424	517	308	615	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	20,585	14,192	46,857	16,129	249	227	424	517	308	615	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	20,585	14,192	53,351	16,129	249	227	424	517	308	615	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	23,100	16,778	46,150	18,708	285	262	487	582	266	532	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	23,100	16,778	55,955	18,708	285	262	487	582	266	532	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	23,100	16,778	65,761	18,708	285	262	487	582	266	532	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	25,613	19,354	55,222	21,293	322	297	550	643	233	466	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	25,613	19,354	65,071	21,293	322	297	550	643	233	466	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69	25,613	19,354	74,920	21,293	322	297	550	643	233	466	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69-115	28,209	21,936	64,323	23,862	357	331	614	701	211	422	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69-115	28,209	21,936	74,156	23,862	357	331	614	701	211	422	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	69-115	28,209	21,936	87,241	23,862	357	331	614	701	211	422	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	115	30,778	24,526	70,214	26,450	393	364	678	756	189	379	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	115	30,778	24,526	83,287	26,450	393	364	678	756	189	379	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
	115	30,778	24,526	96,387	26,450	393	364	678	756	189	379	1,440	- + Part Number Line Voltage kV: Section Length mm: Rubber Length mm: Leakage mm: Dry Arc mm: 60 Hz Dry Flashover kV: 60 Hz Wet Flashover kV: CIFO+ kV: CIFO- kV: Cantilever Load (kg) MDCL: Cantilever Load (kg) SCL: Tensile Load (kg) STL: - +
