Substation Insulators

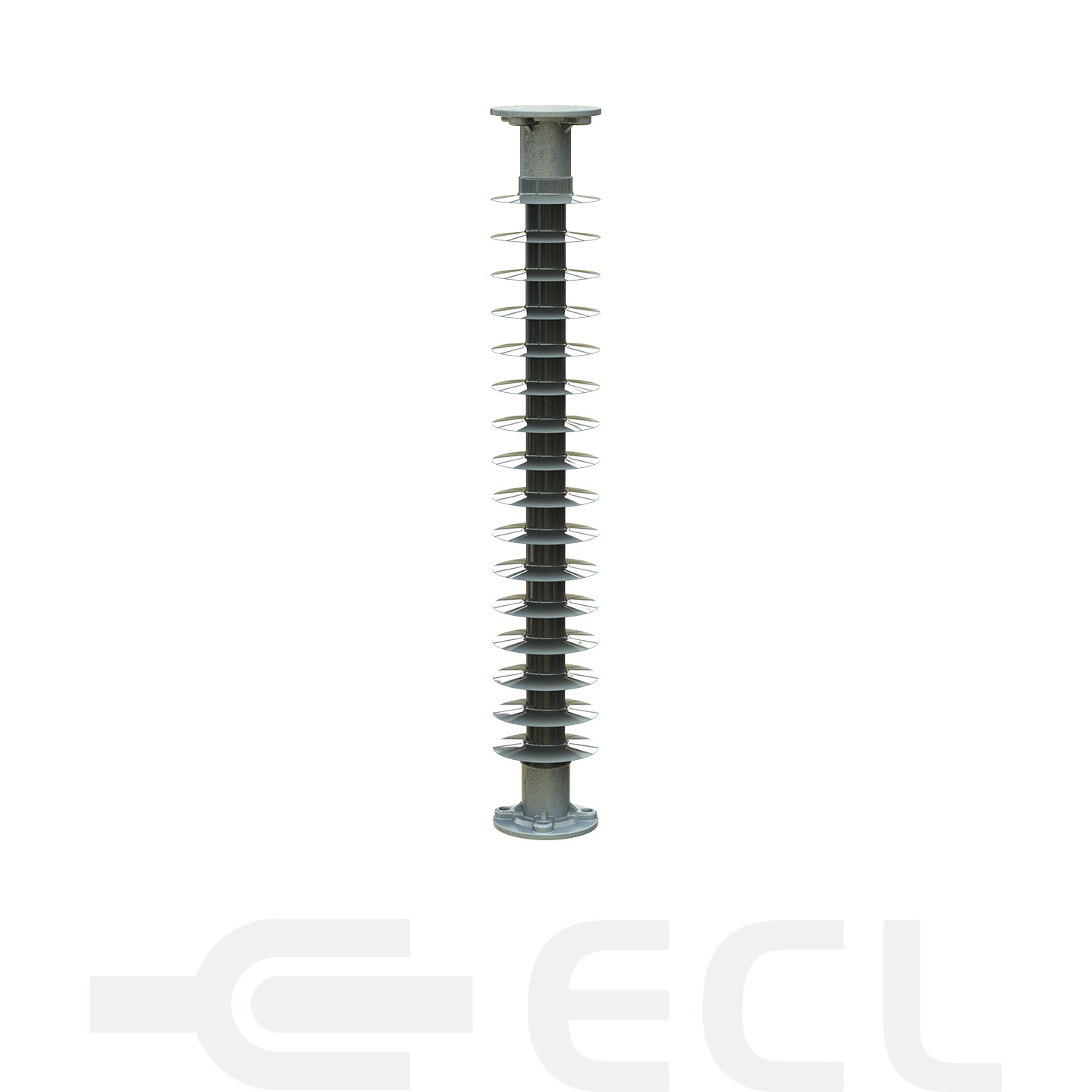

MPS offers a wide variety of standard and high strength silicone station posts from 7.5 kV to 345 kV for the utility market.

In addition to being used on bus supports, many global switch manufacturers offer Maclean station posts on switches. MPS also offers direct one piece silicone replacement products to retrofit older cap and pin posts in substations.

Standard Strength:

MPS offers standard strength silicone station posts. These station posts meet the mechanical heights and comparable electrical performance of their porcelain TR numbers. This means they can be used as direct replacements in most cases. These weigh about 1/3 the weight of porcelain and offer excellent hydrophobic properties.

Part Number	Porcelain TR	Line Voltage	BIL Rating	Height mm	Cantilever kg	MWL @ 40% kg	Weight kg	SML kg	Compression kg	Leakage mm	Deflection @ TR MWL	CIFO+ kV	Low Freq. Wet Withstand (min)	Critical Impulse Withstand (min)
	202	7.5	95	190.5	907	362	2.7	907	4,535	323	0.1	105	30	105	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	205	15	110	254	907	362	3.2	907	4,535	520	0.1	125	45	125	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	208	23	150	355.6	907	362	4.1	907	4,535	817	0.2	170	60	170	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	210	34.5	200	457.2	907	362	4.5	907	4,535	1,115	0.7	225	80	225	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	214	46	250	558.8	907	362	5.4	907	4,535	1,412	0.8	280	100	280	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	278	69	350	762	1,360	544	17.2	1,995	11,339	1,828	0.7	390	180	390	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	216	69	350	762	680	272	7.7	680	3,401	1,955	1.5	390	145	390	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	287	115	550	1,143	1,179	471	20.8	1,270	5,443	2,694	2.9	610	300	610	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	289	138	650	1,371.6	997	399	22.2	1,043	3,628	3,395	4	710	380	710	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	295	161	750	1,574.8	839	335	27.2	907	2,721	3,980	4.8	810	450	810	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
	308	230	900	2,032	657	263	23.6	725	1,542	5,379	7.6	1,010	590	1,010	- + Part Number Porcelain TR: Line Voltage: BIL Rating: Height mm: Cantilever kg: MWL @ 40% kg: Weight kg: SML kg: Compression kg: Leakage mm: Deflection @ TR MWL: CIFO+ kV: Low Freq. Wet Withstand (min): Critical Impulse Withstand (min): - +
