Shackle Insulators
Distribution Insulators - 33kV & Below

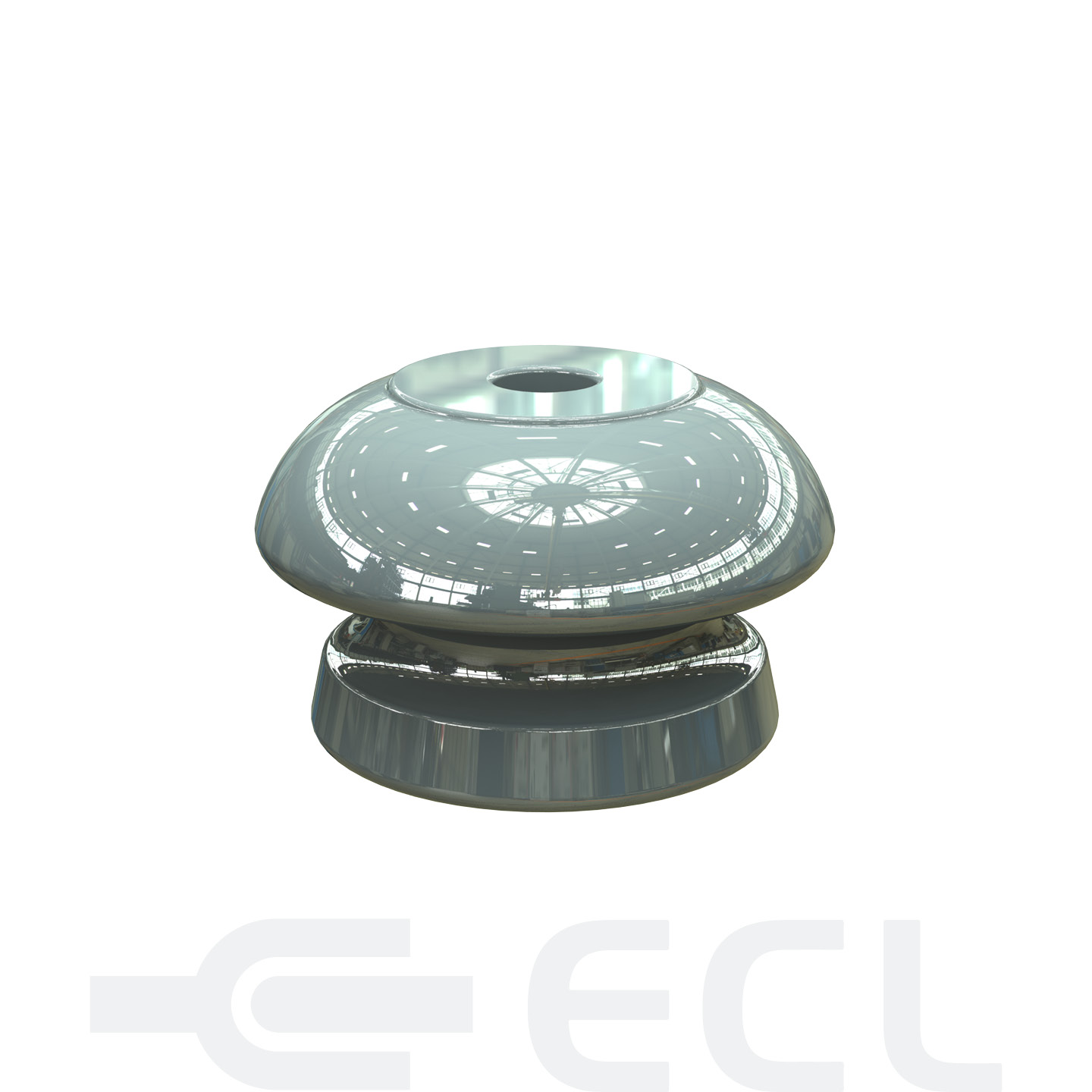

A shackle insulator, also known as a spool insulator, is a type of electrical insulator commonly used in low-voltage overhead distribution lines to provide both electrical insulation and mechanical support for conductors.
| Part Number | Description | Line Voltage kV | Dry Flashover kV | Wet Flashover kV | Designed Loading kN | Colour | Standard | |
|---|---|---|---|---|---|---|---|---|
|
|
Insulator 205 LV Bobbin | 3.3 | 25 | 13 | 13.5 | Munsell Grey | BS | |
|
|
Insulator 220 LV Bobbin | 0.65 | 10 | 5 | 5.5 | Munsell Grey | BS | |
|
|
Shackle Insulator | 1 | 10 | 5 | 20 | Munsell Grey | AS 3608-1989 | |
|
