Gen 2 46kV-69kV Post - Horizontal Trunnion

Gen 2 46kV-69kV Post - Horizontal Trunnion

Polymer Line Post Insulators 46kV-69kV

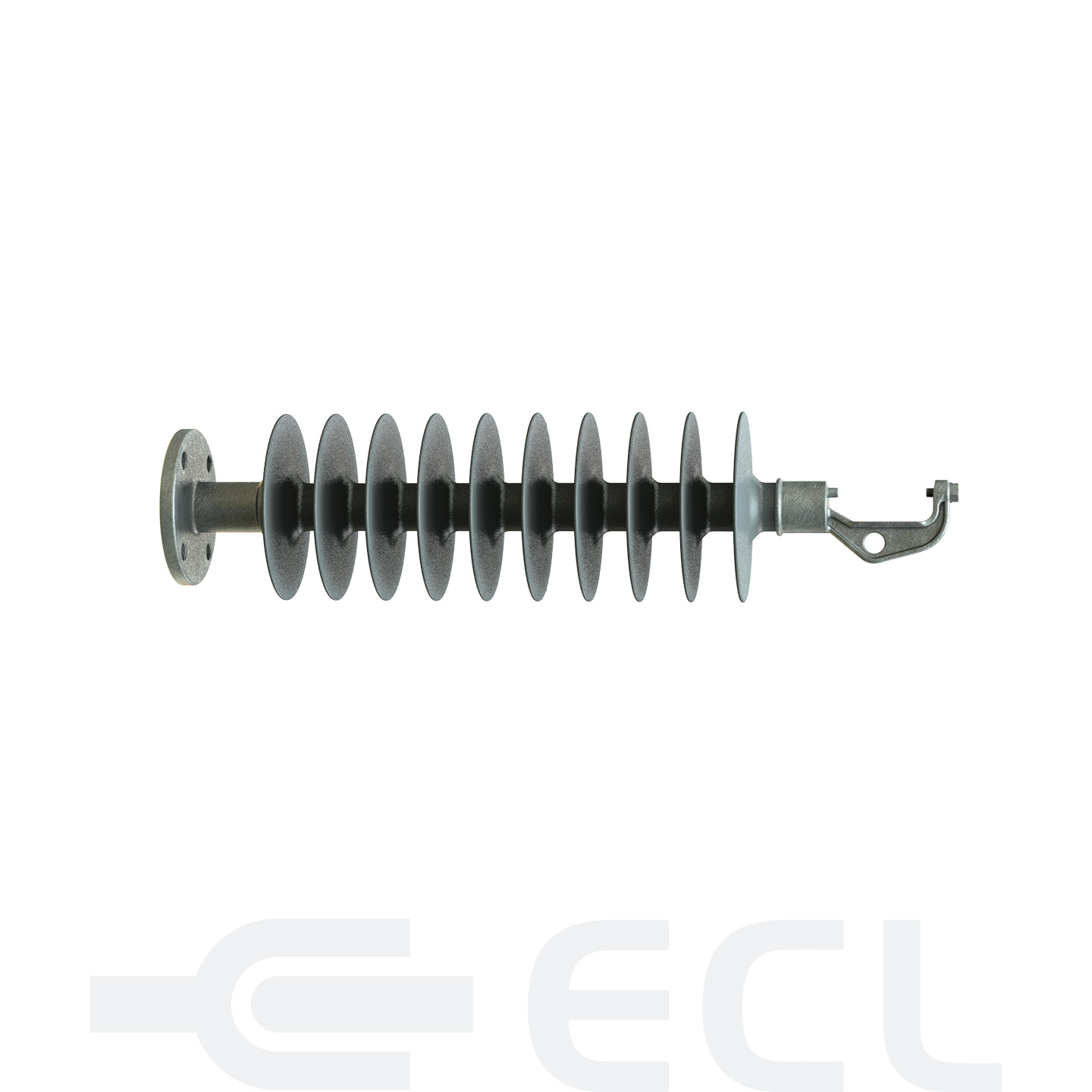

This is the Gen 2 newly designed distribution line post insulator family, catering to the 46kV-69kV voltage classes.

Features:

Standard Trunnion head for horizontal installations
Gen 2 seal uses Crimp Under pressure technology
Extended life, specially formulated silicon housing minimises maintenance needs

Part Number	Line Voltage kV	ANSI Class	Assembly Weight kg	Rubber Length mm	Section Length mm	Dry Arc mm	Leakage mm	STL kg/kN	SCL kg/kN	MDCL kg/kN
	69	51-36	8.2	456	673	529	1,478	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	51-35	7.5	404	617	467	1,308	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-34	6.8	351	564	423	1,142	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-34	6.4	300	513	373	978	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-33	5.9	249	465	321	817	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	51-26	8.3	456	687	529	1,478	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	51-25	8	404	634	467	1,308	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-24	7.6	351	582	423	1,142	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-24	7.3	300	531	373	978	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-24	6.8	249	478	321	817	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
