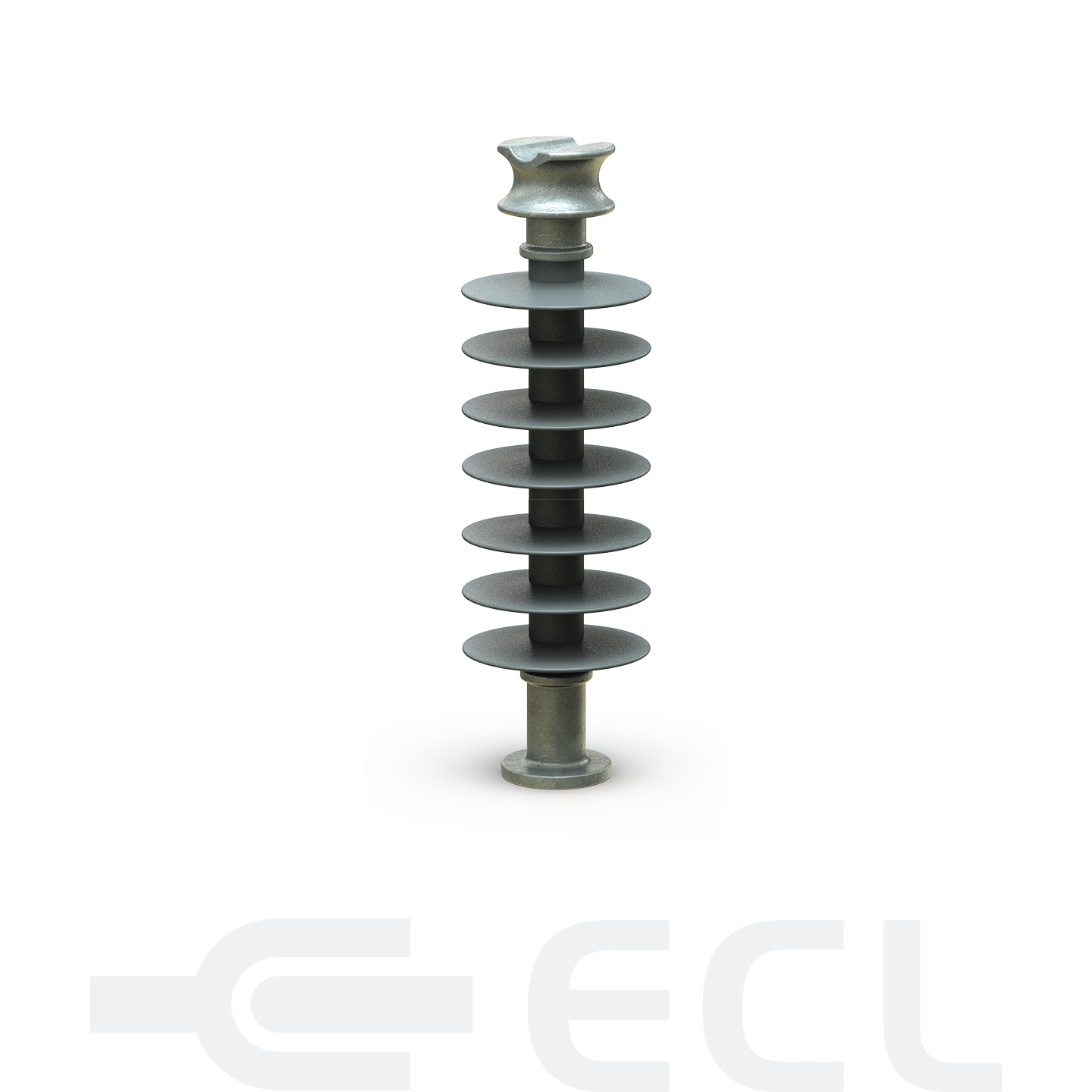

Gen 2 46kV-69kV Post - F-Neck

Polymer Line Post Insulators 46kV-69kV

This is the Gen 2 newly designed distribution line post insulator family, catering to the 46kV-69kV voltage classes.

Features:

Manufactured with 3/4”-10 stud base or aluminum gain base
Various aluminum line side fittings including universal trunnion and drop tongue available
Epoxy Fibreglass core with enhanced hydrophobicity silicone
New and improved Gen 2 PST protection system with no RTV
Strength meets ANSI C29.18 and CSA C411.6

Part Number	Line Voltage kV	ANSI Class	Assembly Weight kg	Rubber Length mm	Section Length mm	Dry Arc mm	Leakage mm	STL kg/kN	SCL kg/kN	MDCL kg/kN
	46	-	6.8	249	465	321	817	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	7.3	300	513	373	978	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	7.6	351	564	423	1,142	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	8	404	617	467	1,308	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	8.3	456	673	529	1,478	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	5.9	249	465	321	817	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	6.4	300	513	373	978	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	6.8	351	564	423	1,142	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	7.3	404	617	467	1,308	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	7.7	456	673	529	1,478	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
