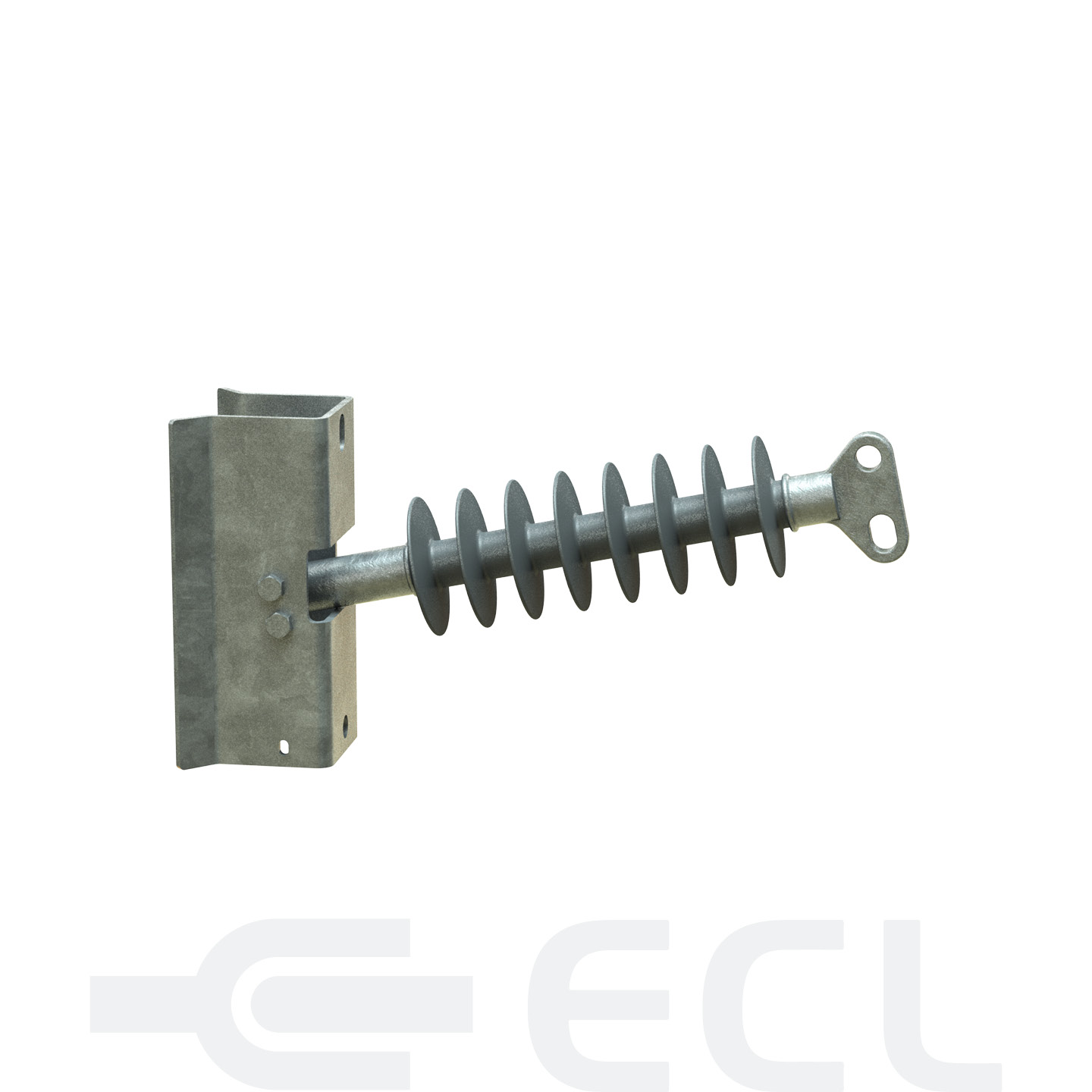

Polymer Line Post Insulators 46kV-69kV

This is the Gen 2 newly designed distribution line post insulator family, catering to the 46kV-69kV voltage classes.

Features:

Gen 2 seal uses Improved PST protection system with no RTV
Various ali line side fittings and drop tongue available
Epoxy fiberglass core with enhanced hydrophobicity silicone
Extended life, specially formulated silicon housing minimises maintenance needs
Versatile so can be installed in a variety of orientations

Part Number	Line Voltage kV	ANSI Class	Assembly Weight kg	Rubber Length mm	Section Length mm	Dry Arc mm	Leakage mm	STL kg/kN	SCL kg/kN	MDCL kg/kN
	46	-	6.8	249	454	321	817	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	7.3	300	506	373	978	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	7.6	351	558	423	1,142	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	8	404	610	467	1,308	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	8.3	456	662	529	1,478	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	5.8	249	480	321	817	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	532	300	532	373	978	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	6.9	351	584	423	1,142	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	69	-	8	456	681	529	1,478	5,000	2,800	1,350	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
