Gen 2 15kV-46KV Post - Vertical Trunnion

Gen 2 15kV-46KV Post - Vertical Trunnion

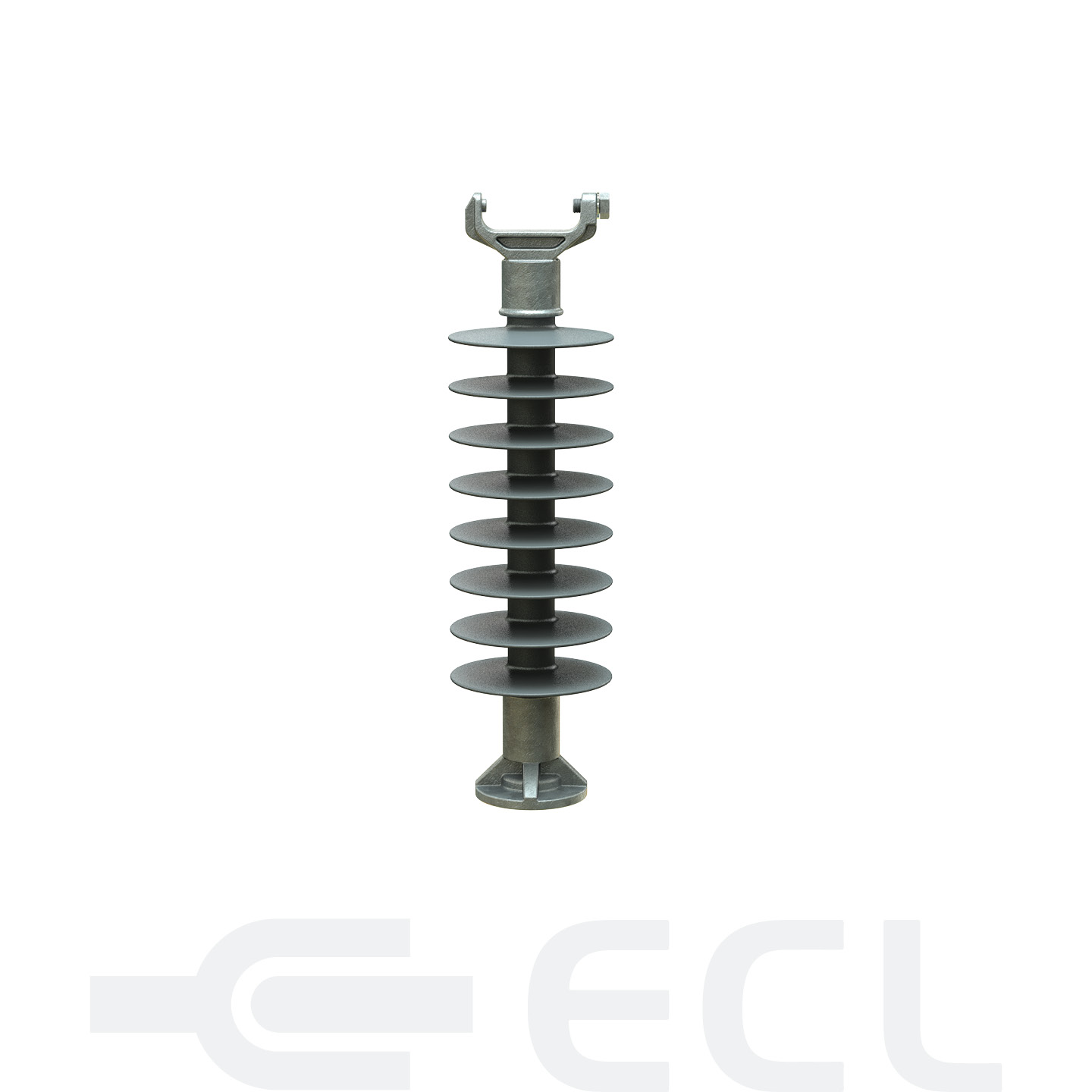

Polymer Line Post Insulators 15kV-46kV

This is the Gen 2 newly designed distribution line post insulator family, catering to the 15kV-46kV voltage classes.

Features:

Standard Trunnion head for horizontal installations
Gen 2 seal uses Crimp Under pressure technology
Extended life, specially formulated silicon housing minimises maintenance needs

Part Number	Line Voltage kV	ANSI Class	Assembly Weight kg	Rubber Length mm	Section Length mm	Dry Arc mm	Leakage mm	STL kg/kN	SCL kg/kN	MDCL kg/kN
	15	51-11	2.9	101	323	158	310	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	25	51-12	3.2	151	373	209	465	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	35	51-13	3.5	201	423	259	620	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	51-14	3.8	252	473	322	798	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	15	-	3.3	102	361	159	310	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	25	-	3.6	152	411	211	465	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	35	-	3.9	201	461	262	620	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	-	4.2	252	511	315	798	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
