Gen 2 15kV-46KV Post - Universal Trunnion

Gen 2 15kV-46KV Post - Universal Trunnion

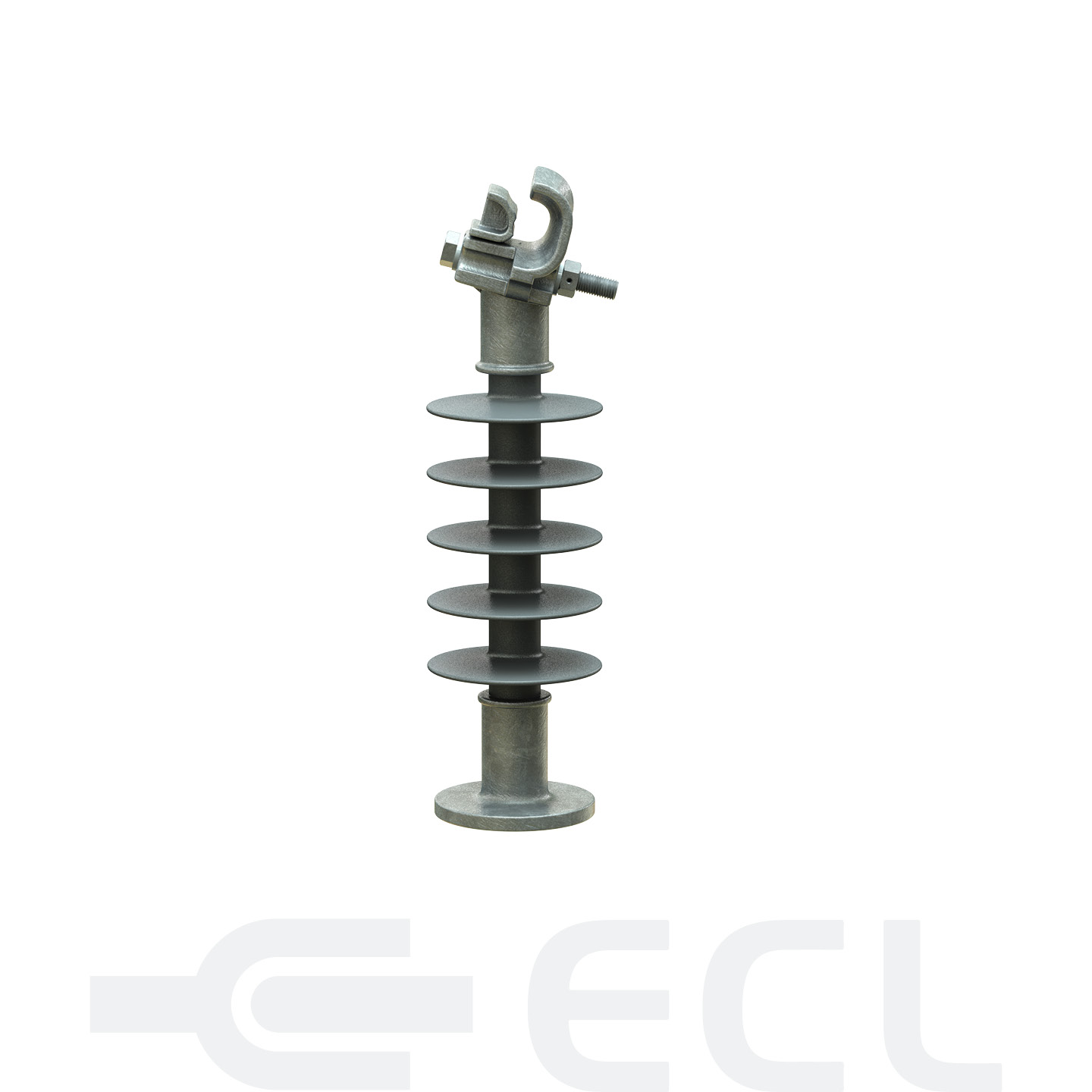

Polymer Line Post Insulators 15kV-46kV

This is the Gen 2 newly designed distribution line post insulator family, catering to the 15kV-46kV voltage classes.

Features:

Best in class production methodology used for transmission insulator manufacturing
PST (primary, secondary, tertiary) watertight seal
Epoxy fibreglass core with enhanced hydrophobicity silicone
New aluminum gain base available
Strength meets ANSI C29.18 and CSA C411.6

Part Number	Line Voltage kV	ANSI Class	Assembly Weight kg	Rubber Length mm	Section Length mm	Dry Arc mm	Leakage mm	STL kg/kN	SCL kg/kN	MDCL kg/kN
	15	ALL	3.6	101	321	158	310	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	25	ALL	3.9	151	371	209	465	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	35	ALL	4.3	201	421	259	620	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	ALL	4.5	252	471	323	798	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	15	ALL	4	102	361	159	310	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	25	ALL	4.3	152	409	211	465	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	35	ALL	4.6	201	433	262	620	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
	46	ALL	4.9	252	489	315	798	2,268	1,270	612	- + Part Number Line Voltage kV: ANSI Class: Assembly Weight kg: Rubber Length mm: Section Length mm: Dry Arc mm: Leakage mm: STL kg/kN: SCL kg/kN: MDCL kg/kN: - +
