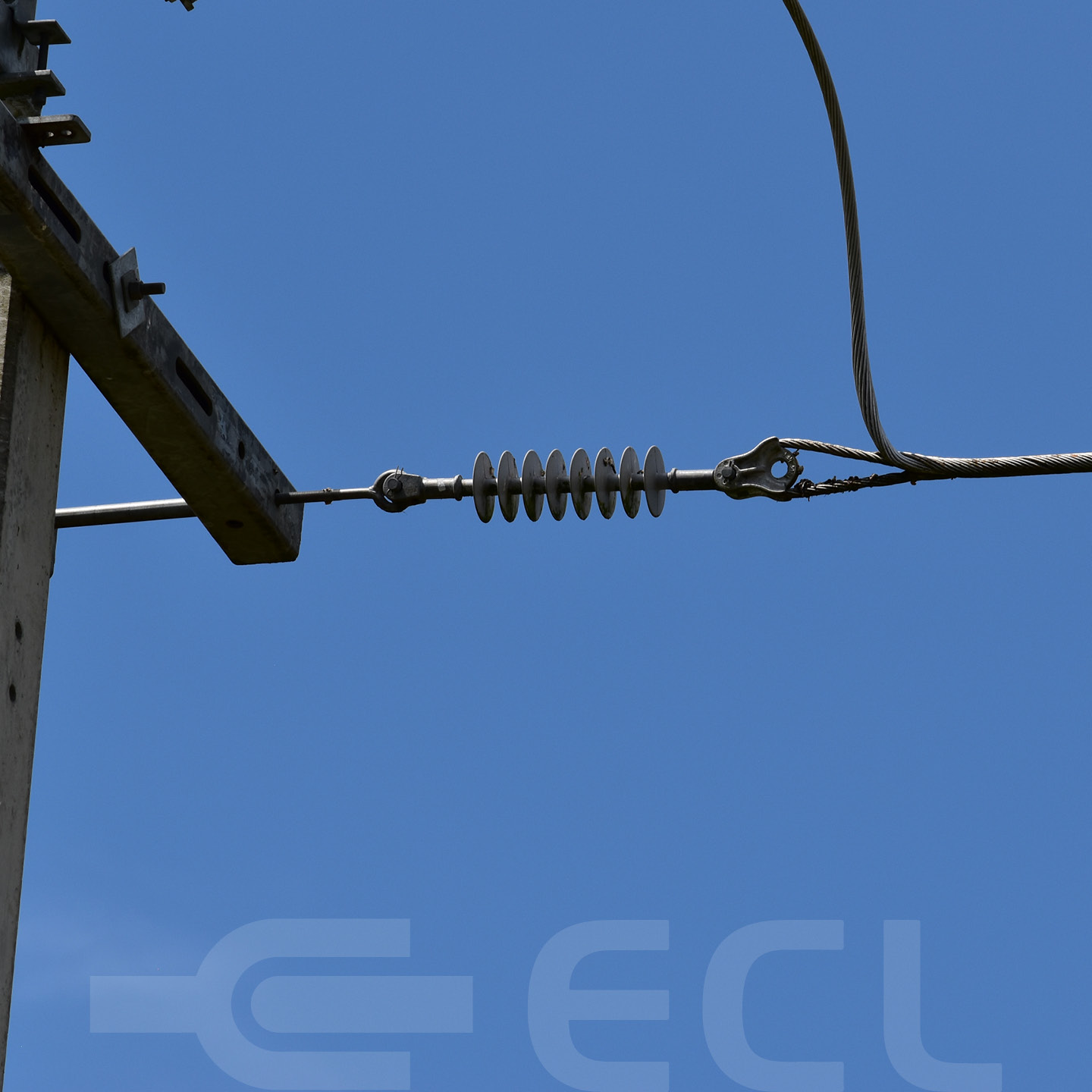

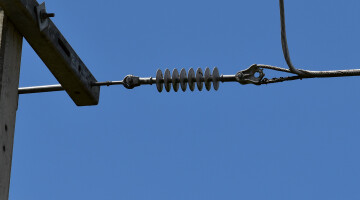

Distribution Deadend Strain Insulators

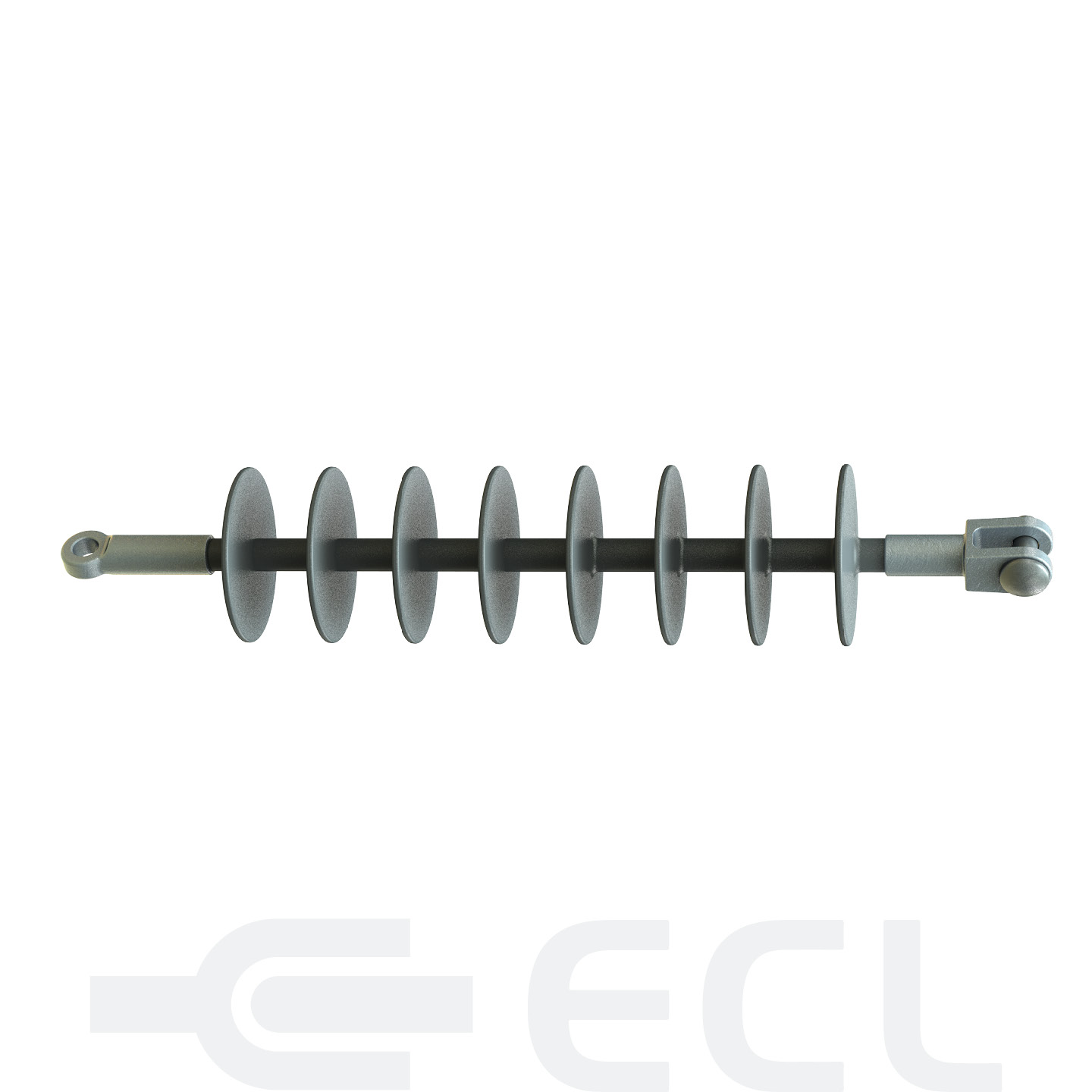

DS-M Series Distribution Deadend Insulators utilise a conventional silicone shed housing through injection molding and bonding to a fibreglass core.

Our Distribution Deadend Insulators range from 15-46kV with Clevis-Tongue connection.

SML = 15,737 lbs [70 kN]
RTL = 7,869 lbs [35 kN]
Maximum Torsional Load = 37 ft/lbs [50 Nm]
All ratings meet or exceed the requirements of ANSI C29.13 (2000) and LWIWG-01 (96)
Corrosion Resistant Fibreglass Core / Silicone Housing / ANSI 52-4 Clevis & Tongue End Fittings
RUS Accepted

Part Number	Line Voltage	Section Length mm	Dry Arc mm	Leakage mm	Electrical Flash- over kV 60 Hz Dry	Electrical Flash- over kV 60 Hz Wet	Electrical Flash- over kV CIFO Pos
	15	330	193	401	90	65	140	- + Part Number Line Voltage: Section Length mm: Dry Arc mm: Leakage mm: Electrical Flash- over kV 60 Hz Dry: Electrical Flash- over kV 60 Hz Wet: Electrical Flash- over kV CIFO Pos: - +
	28	476	345	800	150	135	255	- + Part Number Line Voltage: Section Length mm: Dry Arc mm: Leakage mm: Electrical Flash- over kV 60 Hz Dry: Electrical Flash- over kV 60 Hz Wet: Electrical Flash- over kV CIFO Pos: - +
	28	432	295	627	130	100	190	- + Part Number Line Voltage: Section Length mm: Dry Arc mm: Leakage mm: Electrical Flash- over kV 60 Hz Dry: Electrical Flash- over kV 60 Hz Wet: Electrical Flash- over kV CIFO Pos: - +
	35	559	426	954	170	155	280	- + Part Number Line Voltage: Section Length mm: Dry Arc mm: Leakage mm: Electrical Flash- over kV 60 Hz Dry: Electrical Flash- over kV 60 Hz Wet: Electrical Flash- over kV CIFO Pos: - +
	46	626	460	1,340	187	166	323	- + Part Number Line Voltage: Section Length mm: Dry Arc mm: Leakage mm: Electrical Flash- over kV 60 Hz Dry: Electrical Flash- over kV 60 Hz Wet: Electrical Flash- over kV CIFO Pos: - +
