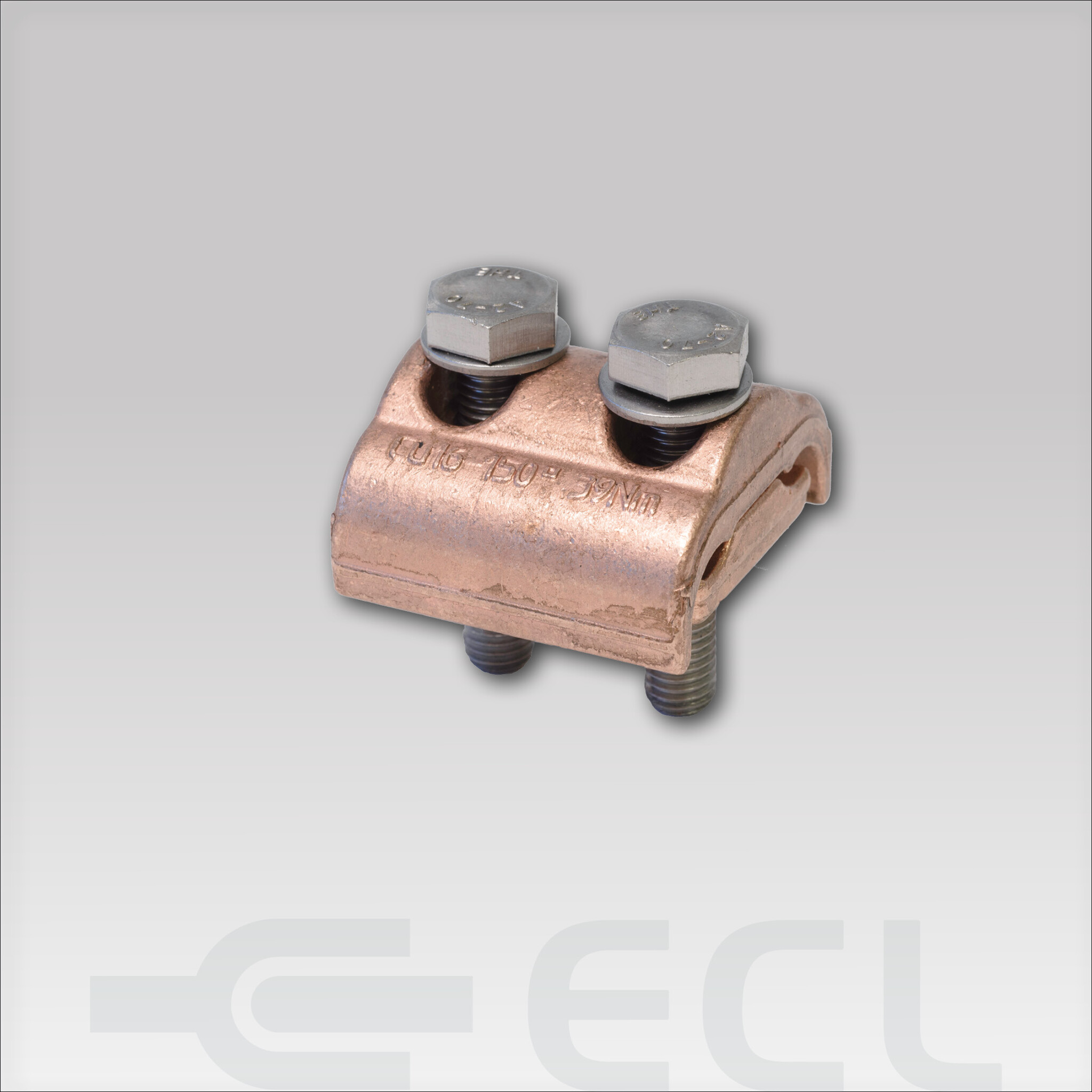

Copper Parallel Groove Clamp

For tap off connection of copper conductors.

Material	High strength copper alloy
Bolts	Stainless steel

Contact the ECL team

Part Number	Conductor Cross Section mm²	Conductor Diameter mm	Bolts
	6-70	3 - 10.5	2 x M8	- + Part Number Conductor Cross Section mm²: Conductor Diameter mm: Bolts: - +
	10-95	3.5 - 12.5	2 x M8	- + Part Number Conductor Cross Section mm²: Conductor Diameter mm: Bolts: - +
	16-150	4.5 - 15.7	2 x M10	- + Part Number Conductor Cross Section mm²: Conductor Diameter mm: Bolts: - +
