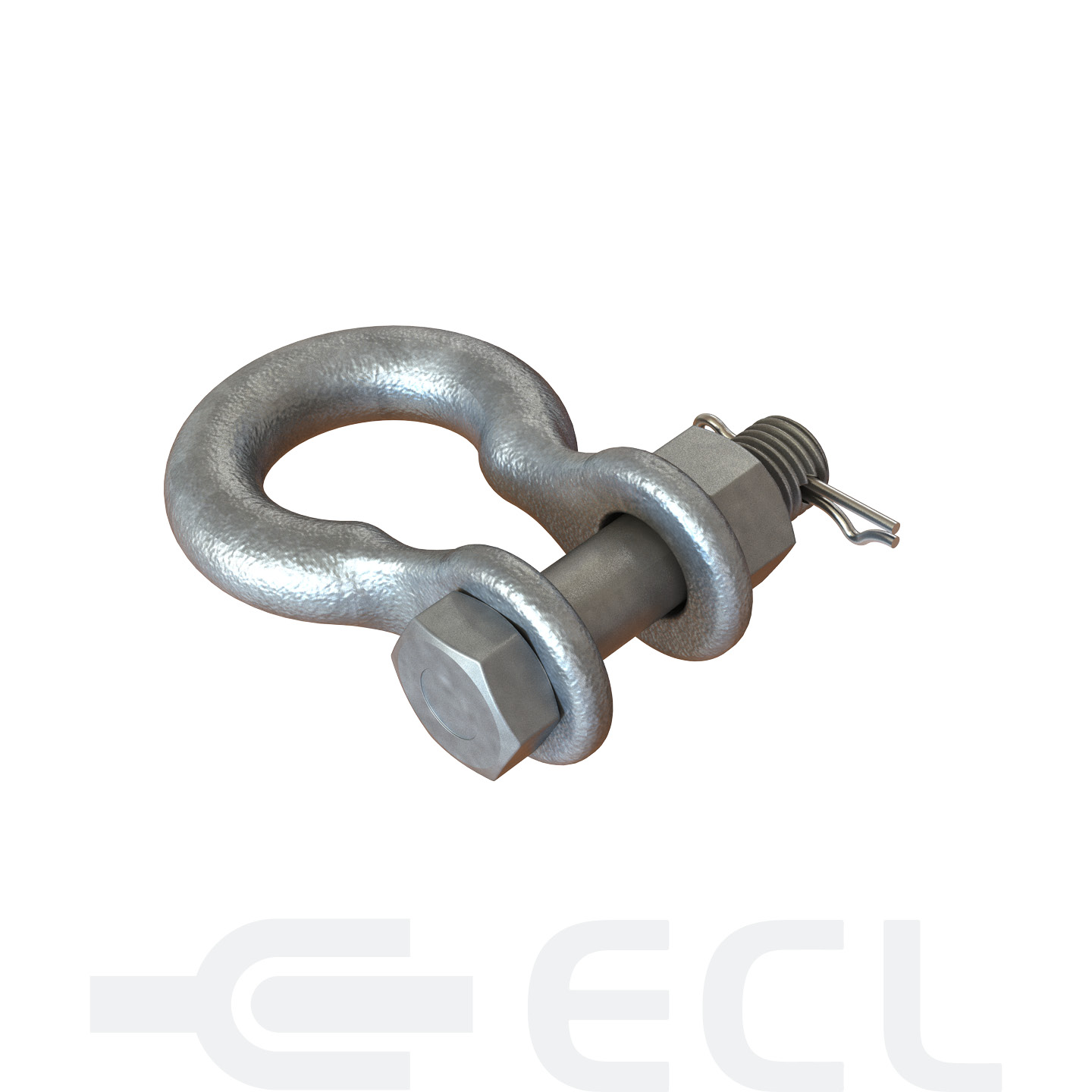

Bow Shackles
Bow Shackles have a superior strength and durability, designed to securely connect chains to anchor points and handle heavy-duty loads with ease.
Material:
- Galvanised Steel

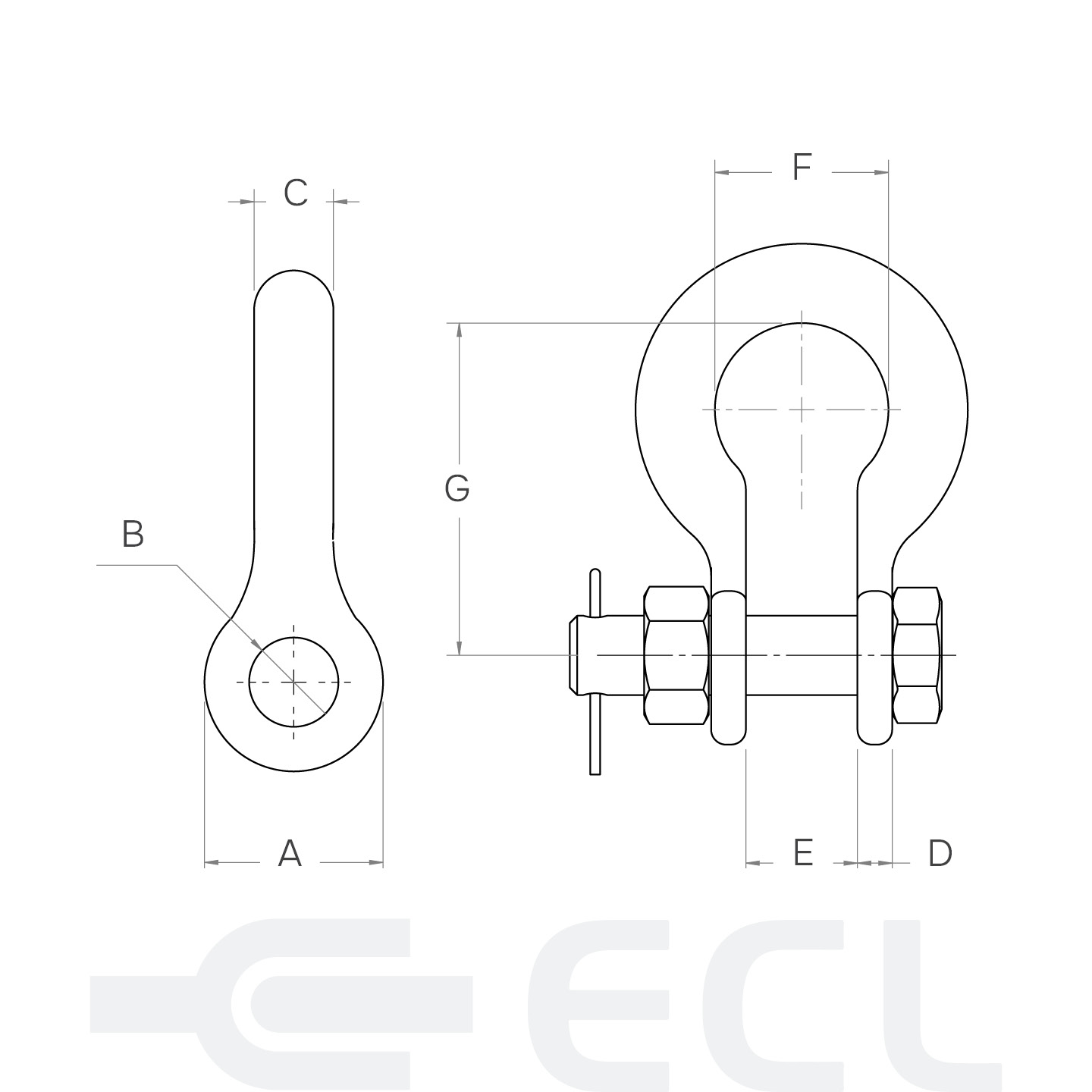

| Dimensions mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | MFL kN | Ball & Shank (A) | Clevis E | A | B | D | F | G | |
|
|
120 | M16 | 22.5 | 36 | 18 | 7 | 34 | 67 | |
|
|
160 | M20 | 24 | 48 | 22 | 12 | 40 | 76 | |
|
|
160 | M20 | 36 | 48 | 22 | 12 | 40 | 76 | |
|
|
320 | M24 | 29 | 60 | 26 | 15 | 50 | 90 | |
|
|
320 | M24 | 36 | 60 | 26 | 15 | 55 | 95 | |
|
|
480 | M30 | 36 | 70 | 32 | 18 | 60 | 110 | |
|
|
210 | M20 | 29 | 60 | 22 | 15 | 50 | 90 | |
|
|
320 | 1 1/8 in. UNC | 43 | 60 | 30 | 15 | 70 | 110 | |
|
