BLUE STRIPE Link Stick Pigtail Hook & Heavy Duty Pigtail

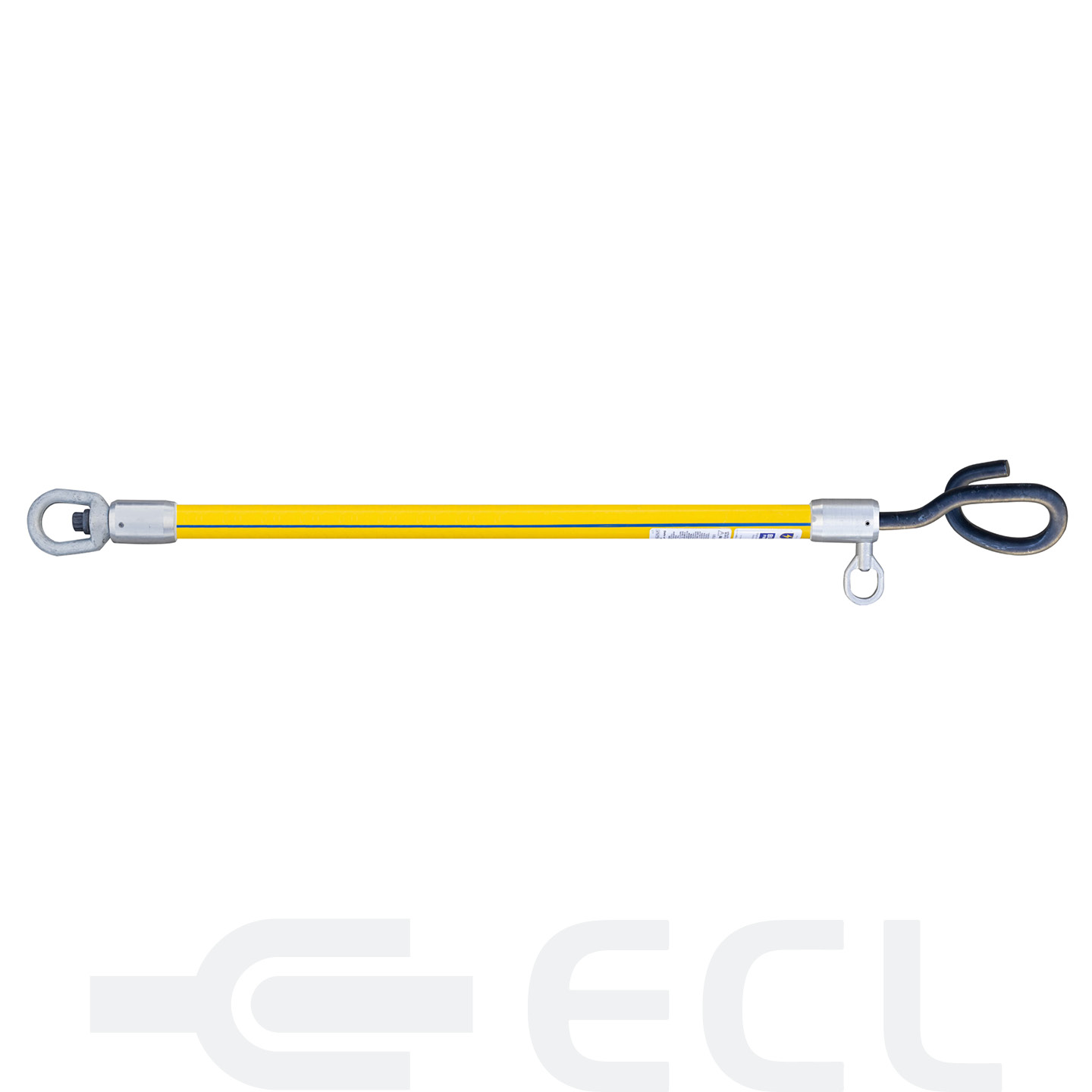

The BLUE STRIPE® Link Stick with Pigtail and Swivel Eye features 32mm diameter foam filled fibreglass, and can be installed or removed via hot stick.
Applications:
- Pulling and lifting line spans for creating work clearance or repositioning phases
- Allows quick installation onto line without needing to operate a latch
- Quicker installation than a regular hook in situations where a true positive lock is not necessary
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Type | Fibreglass Length mm | Diameter mm | Load Limit kg | Conductor Size | |
---|---|---|---|---|---|---|
|
Pigtail Hook & Swivel Eye | 152 | 32 | 907 | Up to 25mm Diameter |
![]() |
|
Pigtail Hook & Swivel Eye | 305 | 32 | 907 | Up to 25mm Diameter |
![]() |
|
Pigtail Hook & Swivel Eye | 381 | 32 | 907 | Up to 25mm Diameter |
![]() |
|
Pigtail Hook & Swivel Eye | 457 | 32 | 907 | Up to 25mm Diameter |
![]() |
|
Pigtail Hook & Swivel Eye | 610 | 32 | 907 | Up to 25mm Diameter |
![]() |
|
Heavy Duty Pigtail & Swivel Eye | 152 | 32 | 1587 | Up to 38mm Diameter |
![]() |
|
Heavy Duty Pigtail & Swivel Eye | 305 | 32 | 1587 | Up to 38mm Diameter |
![]() |
|
Heavy Duty Pigtail & Swivel Eye | 381 | 32 | 1587 | Up to 38mm Diameter |
![]() |
|
Heavy Duty Pigtail & Swivel Eye | 457 | 32 | 1587 | Up to 38mm Diameter |
![]() |
|
Heavy Duty Pigtail & Swivel Eye | 610 | 32 | 1587 | Up to 38mm Diameter |
![]() |
