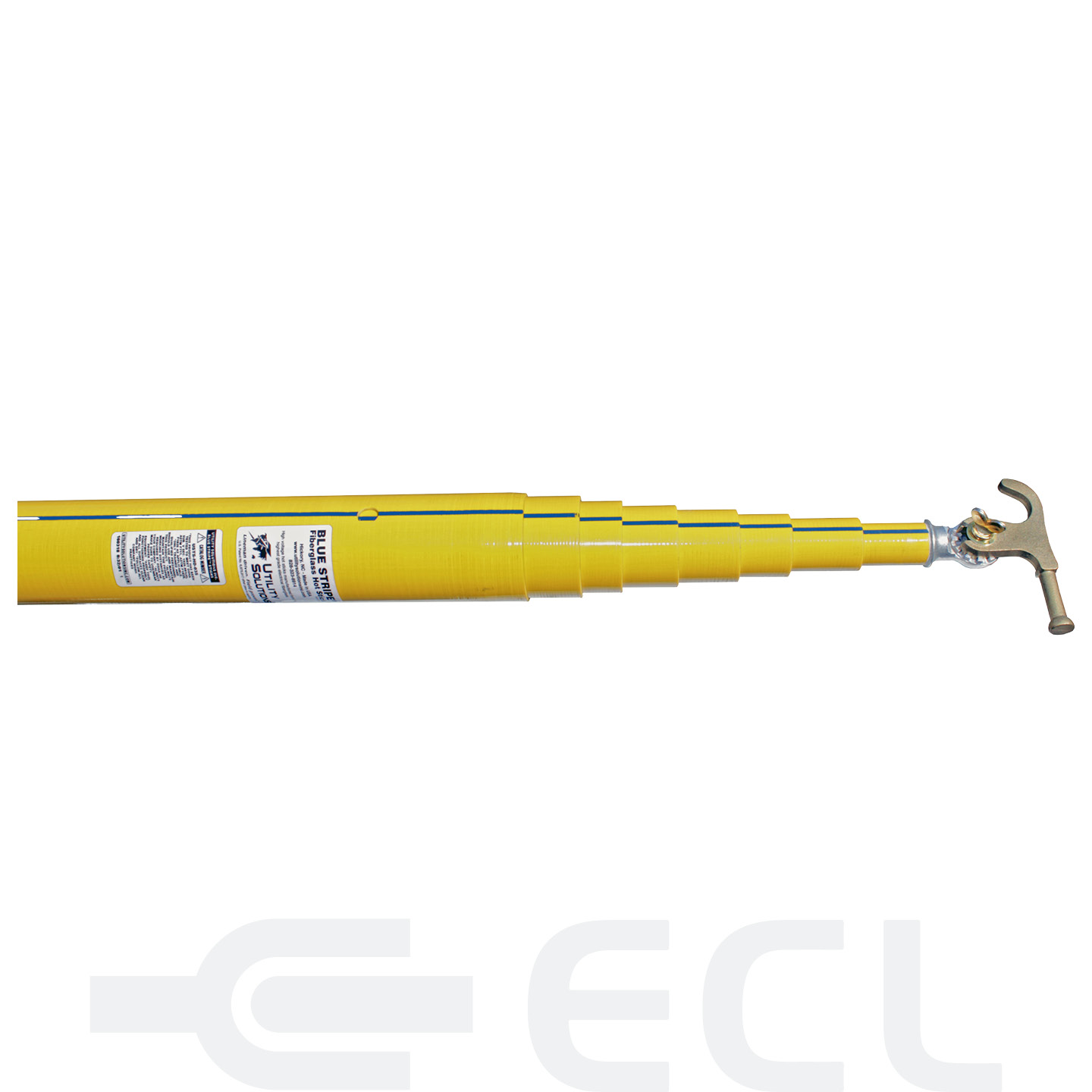

BLUE STRIPE Heavy Duty Telescopic Hot Sticks
Designed for heavy duty pulling, pushing and twisting operations, the BLUE STRIPE® Heavy Duty Telescopic Hot Sticks features a 28mm diameter first section to provide additional strength. The machined spline end assembly is securely fastened to the handle for higher torque application.

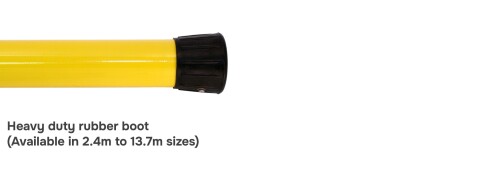

Accessories:
Accessories ordered separately on request, please contact the ECL team.
| Part Number | Size m | Closed Length m | Operating Length m | Weight kg | Protective Bag | |
|---|---|---|---|---|---|---|
|
|
4.9 | 1.4 | 4.9 | 3.6 | 2.6 | USSB-005 | |
|
|
6.1 | 1.47 | 6.4 | 5.2 | 3.4 | USSB-005 | |
|
|
7.6 | 1.5 | 7.9 | 6.4 | 5.2 | 4.3 | USSB-005 | |
|
|
9.1 | 1.57 | 9.1 | 7.9 | 6.4 | 5.2 | 5.3 | USSB-008 | |
|
|
10.7’ | 1.6 | 10.7 | 9.1 | 7.9 | 6.4 | 5.2 | 6.5 | USSB-008 | |
|
|
12.2’ | 1.65 | 12.2 | 10.7 | 9.1 | 7.9 | 6.4 | 7.8 | USSB-008 | |
|
|
13.7’ | 1.7 | 13.7 | 12.2 | 10.7 | 9.1 | 7.9 | 8.8 | USSB-008 | |
|
|
15.2 | 1.75 | 15.2 | 13.7 | 12.2 | 10.7 | 9.1 | 11.2 | USSB-006 | |
|
