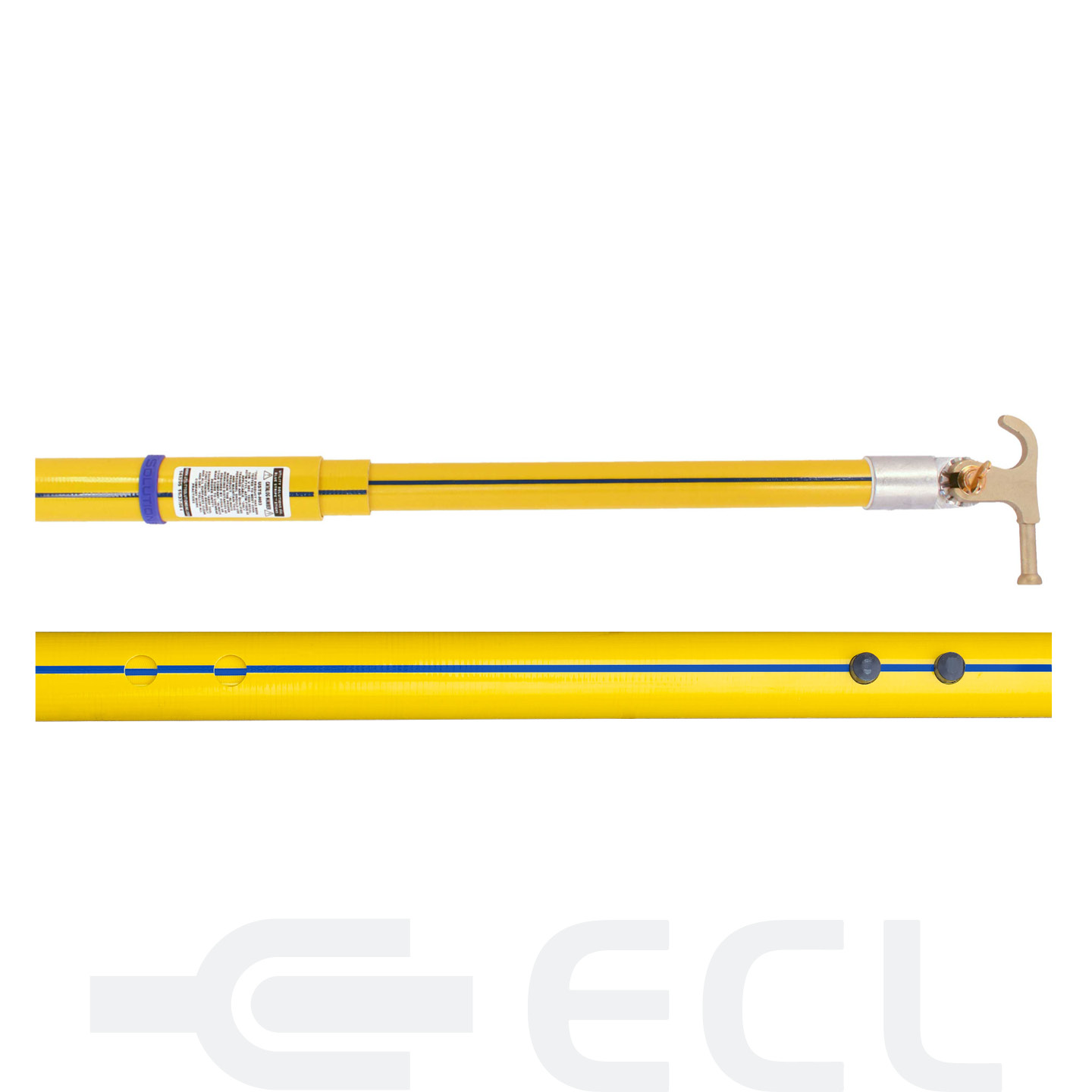

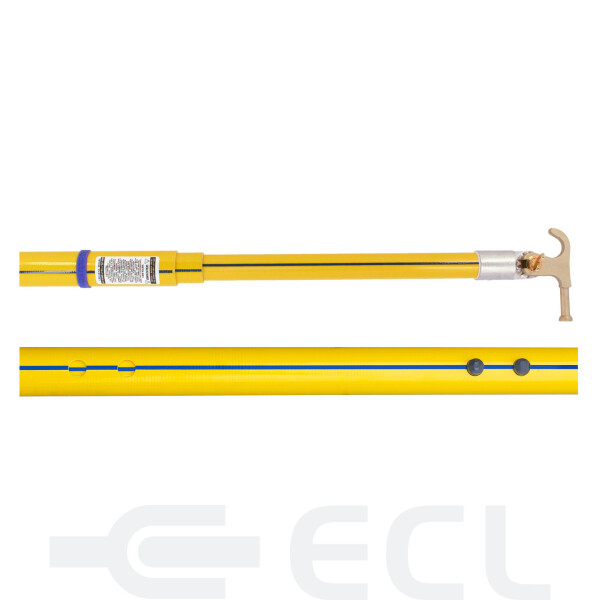

BLUE STRIPE Heavy Duty Substation Sticks
BLUE STRIPE® Substation Sticks are robust, compact and built for heavy duty substation applications. All Heavy Duty Substation sticks now come standard with a robust Rubber Boot.
Features:
- Dual Button Design for Added Strength
- High Performance Closed Cell
- Foam Filled Inner Section
- Compact Telescopic Design
- BLUE STRIPE® Alignment Feature
| Part Number | Description | No. of Sections | Operating Lengths m | Collapsed Length m | Diameter mm | Weight kg | |
|---|---|---|---|---|---|---|---|
|
|

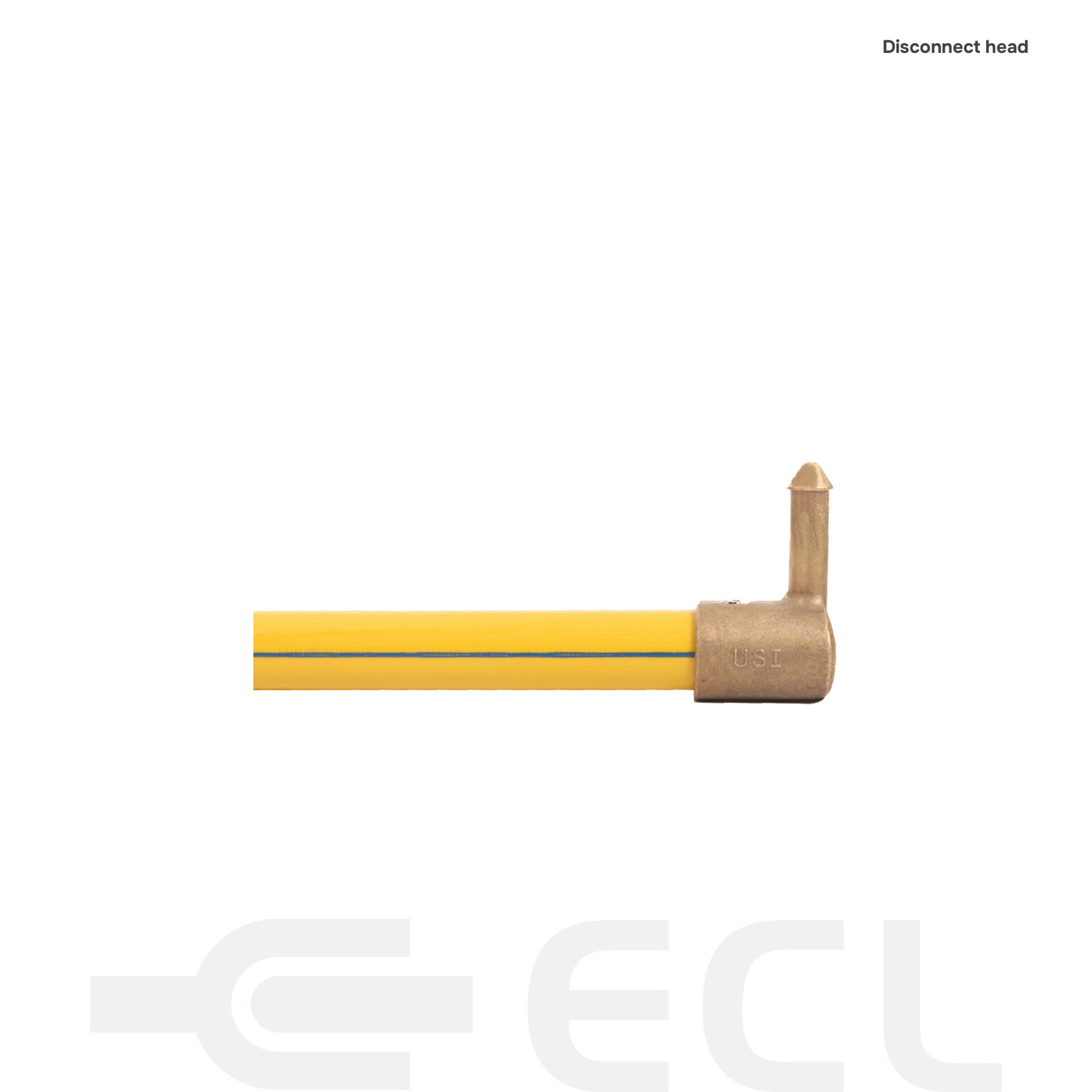

Disconnected head | 2 | 3.9 | 3.7 | 3.4 | 3 | 2.2 | Inner: 32 Outer: 38 | 2.7 | |
|
|

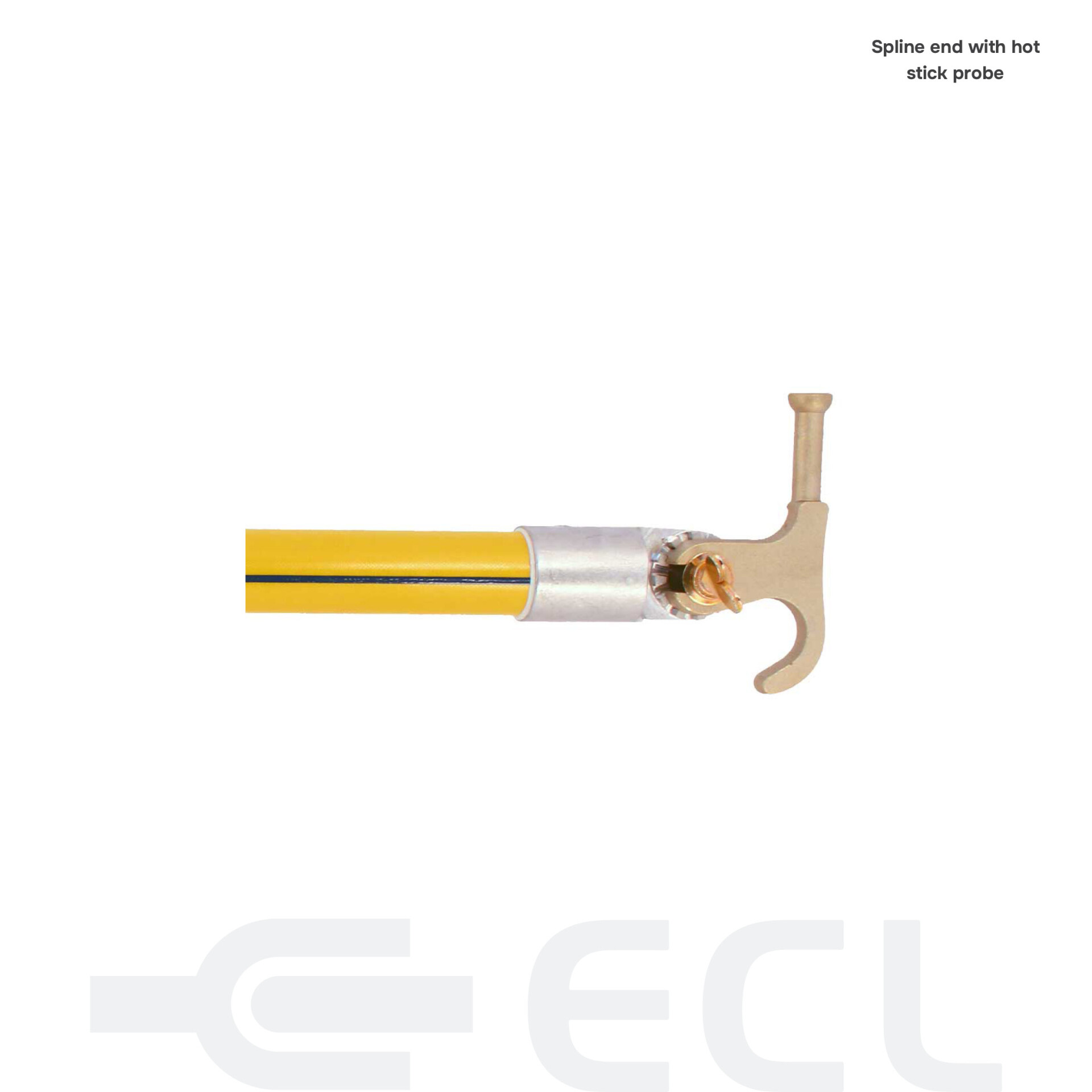

Spline end with hot stick probe | 2 | 3.9 | 3.7 | 3.4 | 3 | 2.2 | Inner: 32 Outer: 38 | 2.7 | |
|
|

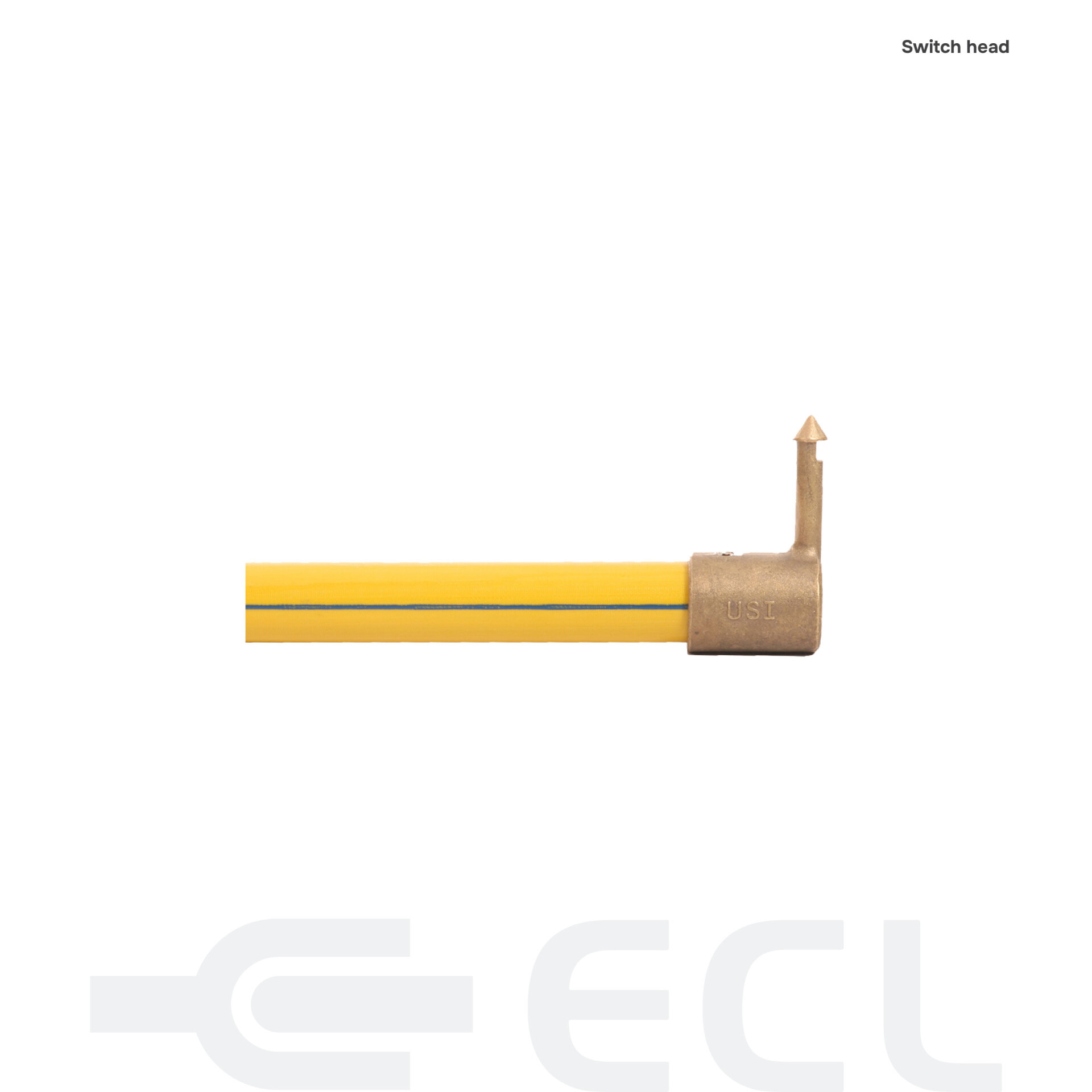

Switch head | 2 | 3.9 | 3.7 | 3.4 | 3 | 2.2 | Inner: 32 Outer: 38 | 2.7 | |
|
|

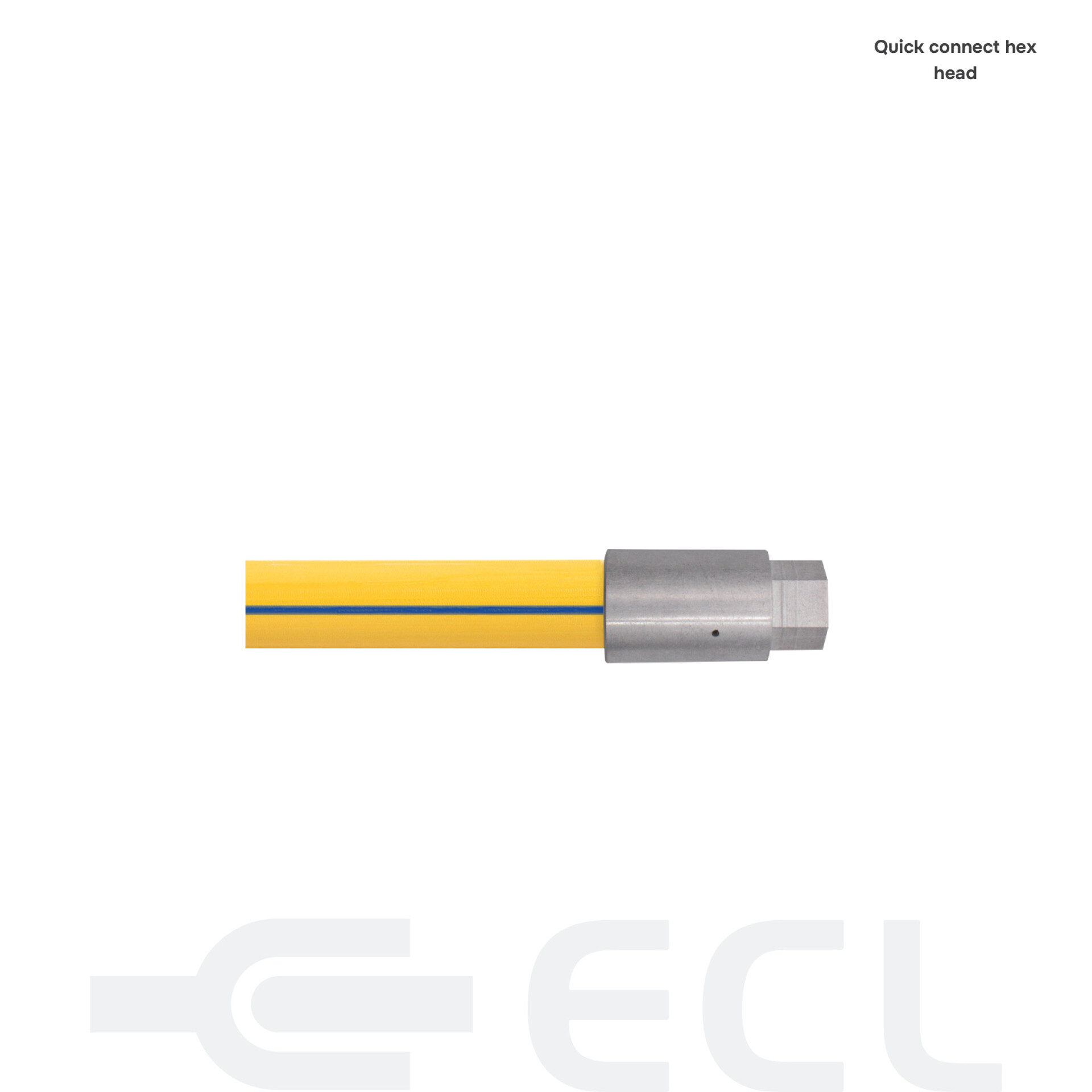

Quick connect head | 2 | 3.9 | 3.7 | 3.4 | 3 | 2.2 | Inner: 32 Outer: 38 | 2.7 | |
|
|
Disconnect head | 3 | 5.6 | 5.3 | 5 | 4.7 | 4 | 3.7 | 3.4 | 3.1 | 2.3 | Inner: 32 Middle: 38 Outer: 44 | 4 | |
|
|
Spline end, hot stick probe | 3 | 5.6 | 5.3 | 5 | 4.7 | 4 | 3.7 | 3.4 | 3.1 | 2.3 | Inner: 32 Middle: 38 Outer: 44 | 4 | |
|
|
Switch head | 3 | 5.6 | 5.3 | 5 | 4.7 | 4 | 3.7 | 3.4 | 3.1 | 2.3 | Inner: 32 Middle: 38 Outer: 44 | 4 | |
|
|
Quick connect head | 3 | 5.6 | 5.3 | 5 | 4.7 | 4 | 3.7 | 3.4 | 3.1 | 2.3 | Inner: 32 Middle: 38 Outer: 44 | 4 | |
|
