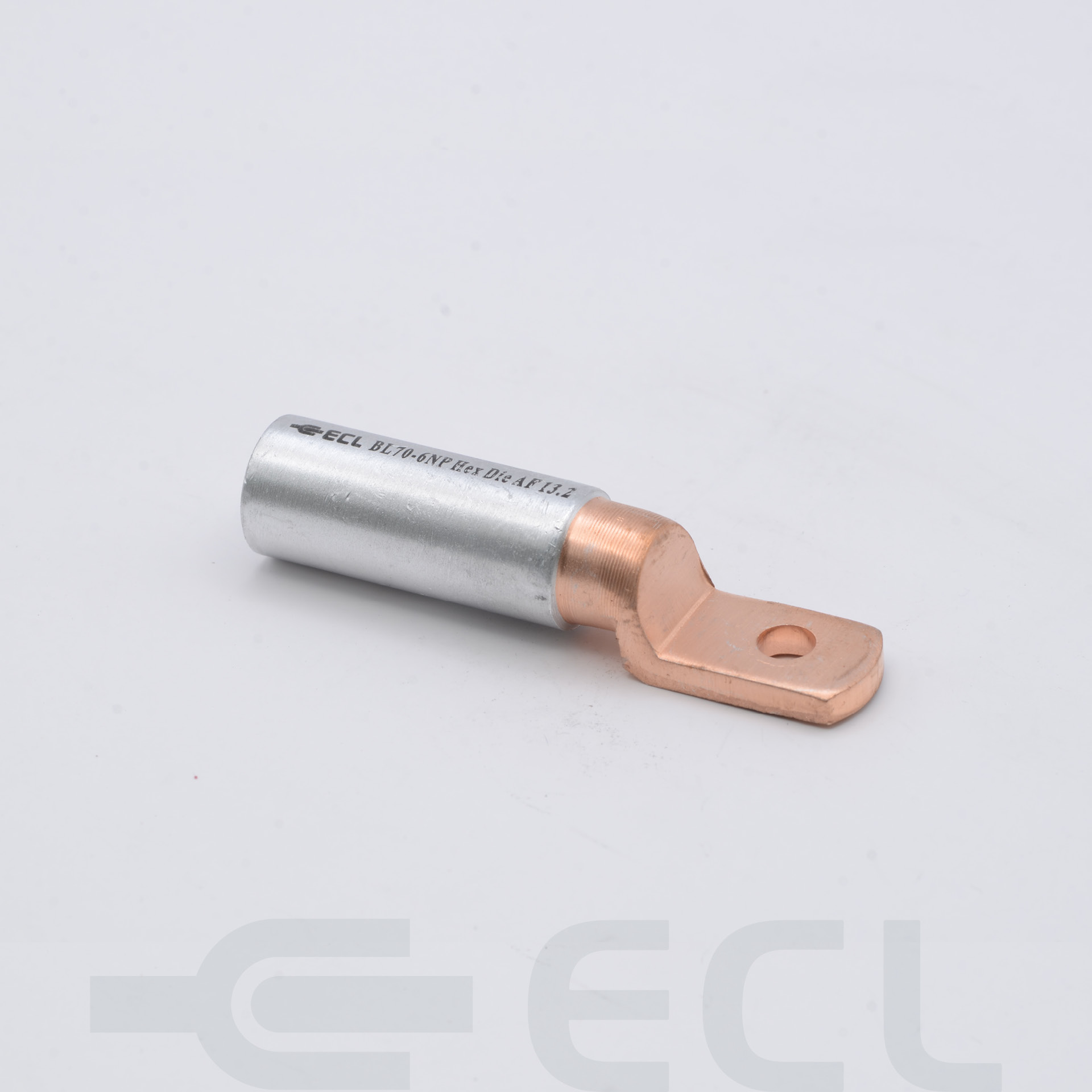

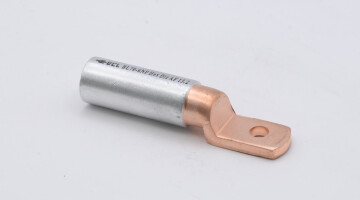

Bimetal Narrow Palm Lugs

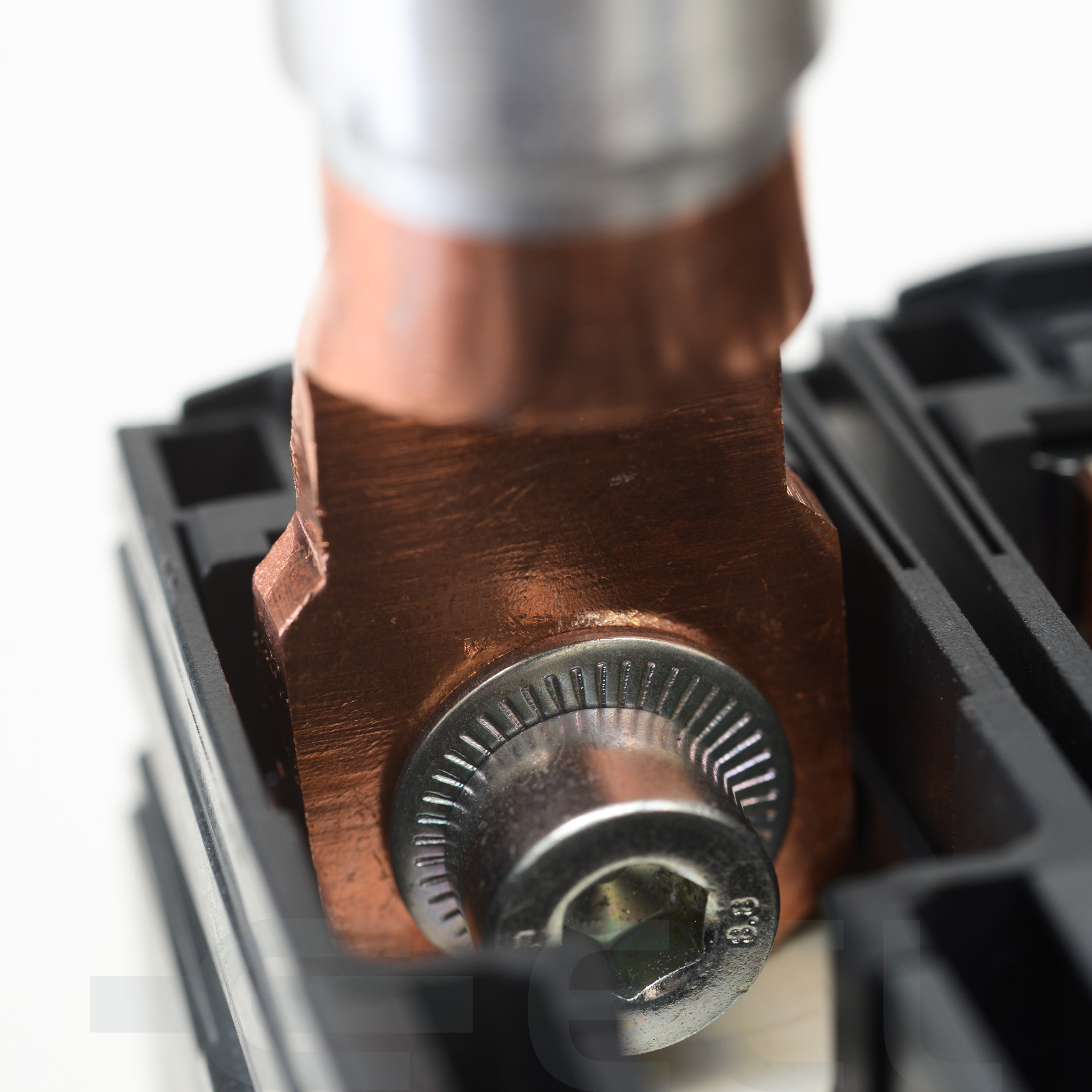

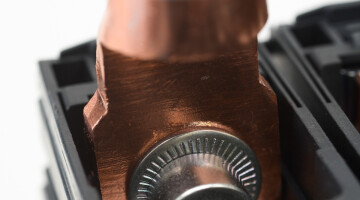

Bimetal Narrow Palm Lugs are used for MCCB connections. Complete with jointing compound in the aluminium barrel, capped end and compression die information.
PLEASE CHECK: If you are using Fine Stranded Flexible Aluminium Cable, please go to our Bimetal Lugs - Narrow Palm - Flexible Aluminium page.
Crimp Die information is supplied with each Bimetal Lug.
Contact the ECL team

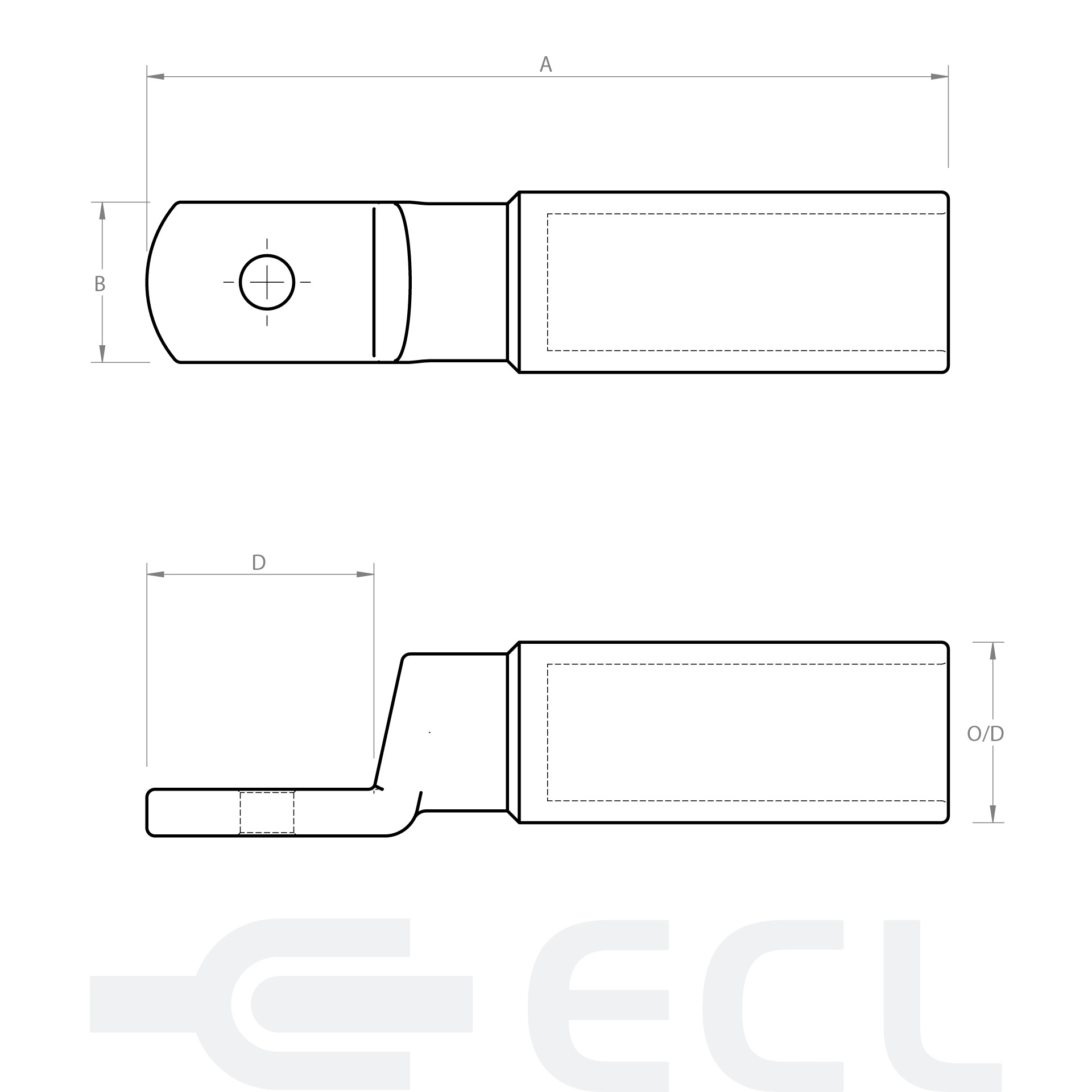

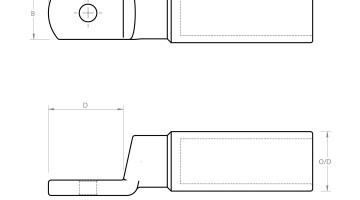

| Dimensions mm | Crimp Die Info | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Cable Size | Stud Size mm | A | B | C | D | O/D | A/F Hex Die mm | Die Part number | |
|
|
25mm² | 6 | 75 | 13 | 4.5 | 24 | 12.0 | 9.0 | DA25/35(12T Crimp) | |
|
|
25mm² | 8 | 75 | 13 | 4.5 | 24 | 12.0 | 9.0 | DA25/35(12T Crimp) | |
|
