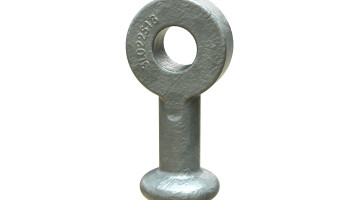

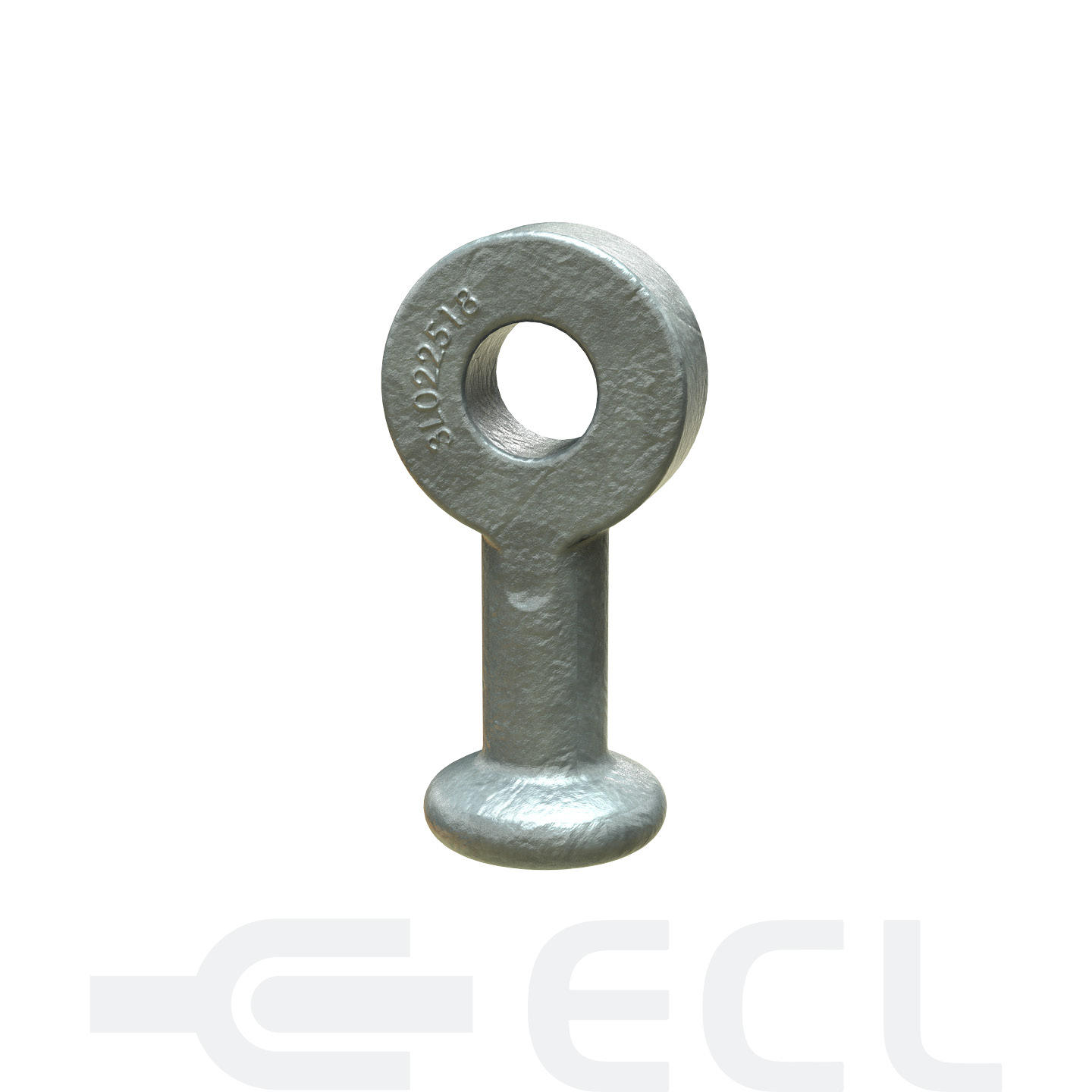

Ball Tongue
Ball Tongue with a ball-and-socket design allows for flexibility and ease of installation in various utility applications.
Material:
Galvanised Forged Steel

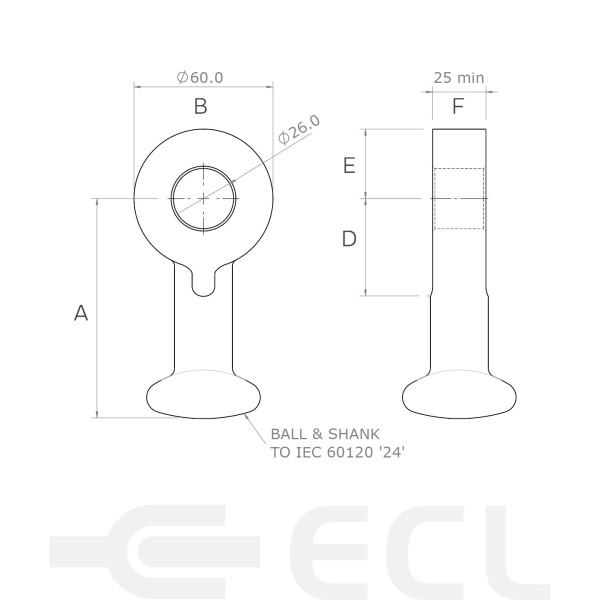

| Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | MFL kN | Hole (C) | A | B | D | E (min) | F | |
|
|
160 | 22 | 76 | 48 | 35 | 24 | 20 | |
|
|
300 | 26 | 95 | 60 | 42 | 30 | 25 | |
|
